1651929-1

Edgeboard Connectors Overview

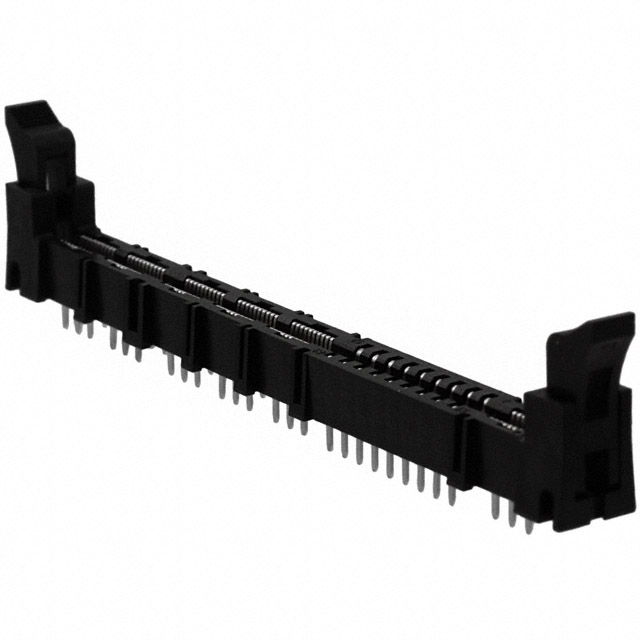

The TE Connectivity AMP Connectors 1651929-1 is a standard card edge connector socket designed for vertical mounting. It features a 30-position configuration with a dual-row arrangement, providing 12 power and 18 signal contacts. The housing is constructed from thermoplastic material rated UL94 V-0 for flammability. Electrical specifications include a current rating of 25 A and a voltage rating of 250 V. The connector utilizes gold-plated contacts to ensure reliable performance in high-density applications.

Edgeboard Connectors Feature Summary

• Dual-row contact layout separating power and signal lines
• Thermoplastic housing with UL94 V-0 flammability rating
• Gold-plated contact surfaces for enhanced conductivity

Edgeboard Connectors Applications

• Vertical board-to-board interconnections
• High-density electronic module interfaces
• Power distribution within circuit assemblies

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version and manufacturing date code upon order confirmation. Ensure that the receiving facility has appropriate ESD protection protocols, as the component contains sensitive metallic contacts. Confirm that the thermal profile during assembly matches the manufacturer's recommended soldering or crimping parameters to maintain structural integrity and electrical continuity.

Edgeboard Connectors Selection Notes

Select this component when a 30-position vertical interface is required with distinct power and signal separation. The 25 A current rating supports moderate power loads, while the 250 V rating suits standard low-voltage digital systems. Consider the thermoplastic housing material for general environmental resistance and verify that the physical footprint aligns with the target PCB design constraints.

Edgeboard Connectors Part Context

This part belongs to the standard card edge connector family produced by TE Connectivity AMP Connectors. It serves as a female socket variant intended for mating with compliant card edge headers. The product line emphasizes robust mechanical retention and consistent electrical performance across various industrial and commercial electronics sectors requiring reliable vertical connectivity solutions.

Edgeboard Connectors Replacement Considerations

Cross-reference compatible parts based on identical pin count, row configuration, and housing dimensions. Verify that any substitute maintains the same current and voltage ratings along with comparable flammability standards to ensure system safety and functional equivalence without redesigning the host board.
