166086-6

Edgeboard Connectors Overview

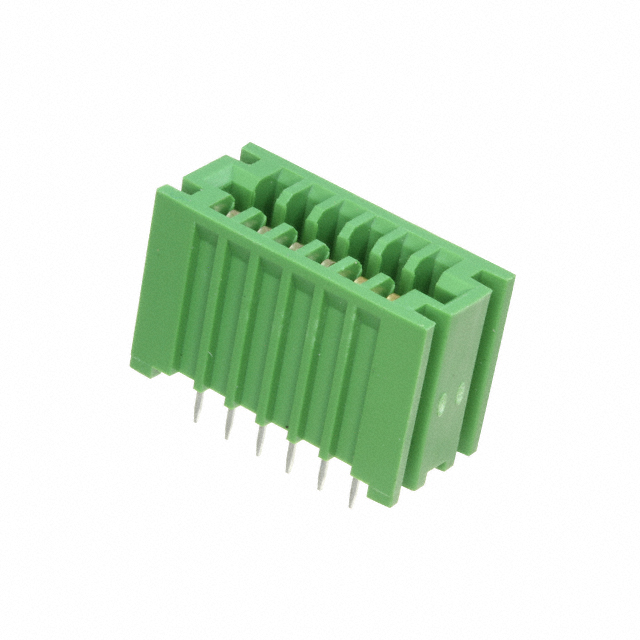

The TE Connectivity AMP Connectors part number 166086-6 is a single-row card edge connector designed for through-hole mounting. It features six female contacts with a 0.100-inch (2.54mm) pitch. The connector body is green, constructed from thermoplastic polyester, and utilizes phosphor bronze contacts plated with gold to a thickness of 16.0µin (0.41µm). It accommodates board thicknesses ranging from 0.057 to 0.072 inches (1.45mm to 1.82mm). The component is RoHS3 compliant, classified under MSL Level 1, and carries an EAR99 classification.

Edgeboard Connectors Feature Summary

• Single-sided female contact configuration for non-specified card applications
• Through-hole termination method ensuring secure PCB attachment
• Gold-plated phosphor bronze contacts for reliable signal transmission
• Thermoplastic polyester housing providing structural stability

Edgeboard Connectors Applications

• Edgeboard interconnection in electronic assemblies
• Single-row circuit board mating interfaces
• Through-hole mounted connector systems

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official TE Connectivity documentation to ensure correct pin count and plating specifications. Confirm that the procurement channel provides valid manufacturer traceability. Check current design status as this component may be marked as not recommended for new designs. Ensure compliance with RoHS3 requirements if applicable to your manufacturing standards.

Edgeboard Connectors Selection Notes

Select this component when a single-row, six-position female connector is required for through-hole assembly. Ensure the target PCB edge thickness falls within the 1.45mm to 1.82mm operational range. Verify that the 0.100-inch pitch aligns with the mating card edge layout. Consider the straight body orientation and green housing color for mechanical fit and identification purposes.

Edgeboard Connectors Part Context

This component belongs to the AMP EDGE series of low-profile connectors manufactured by TE Connectivity. It is categorized under card edge connectors and edgeboard connectors. The base product number is 166086, with the -6 suffix denoting the specific configuration. It serves as a standard interconnect solution for single-sided board applications requiring robust through-hole mounting.

Edgeboard Connectors Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Consult official TE Connectivity cross-reference tools or distributor databases for verified alternatives. Ensure any replacement matches the 6-position, single-side, through-hole specification and compatible board thickness range.
