Edgeboard Connectors Overview

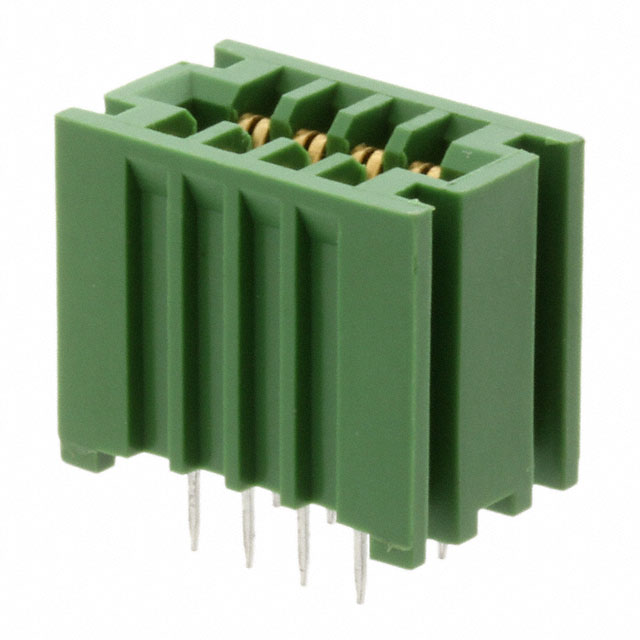

The TE Connectivity AMP Connectors part number 166087-4 is a standard card edge connector designed for board-to-card connections. It features an 8-position female contact configuration with dual-edge termination capabilities. The connector utilizes a vertical through-hole mounting style and operates with a pitch of 0.100 inches (2.54 mm). The contacts are gold-plated to ensure reliable signal transmission, while the housing is constructed from glass-filled thermoplastic material in a green color. This component belongs to the AMP EDGE series and is intended for use in electronic assemblies requiring robust interconnect solutions.

Edgeboard Connectors Feature Summary

• Dual-edge termination design supports 8-position female contacts for secure board-to-card interfacing
• Vertical through-hole mounting orientation ensures stable mechanical integration into electronic assemblies
• Gold-plated contacts provide corrosion resistance and consistent electrical performance across operational cycles

Edgeboard Connectors Applications

• Board-to-card connections in electronic assemblies
• Standard card edge interface implementations
• Electronic systems requiring dual-edge termination

Edgeboard Connectors Procurement Notes

Verify that the specific order matches the 166087-4 designation, as this part is listed as obsolete or discontinued by major distributors. Confirm availability status directly with suppliers before procurement planning. Ensure compatibility with existing PCB layouts and mating card edge specifications. Check for any product change notices or compliance updates related to RoHS and environmental standards prior to finalizing purchase orders.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge, 8-position female card edge solution is required. The 0.100-inch pitch and vertical mounting style must align with the target PCB design constraints. Consider the gold plating for applications demanding high reliability and corrosion resistance. Verify that the glass-filled thermoplastic housing meets the thermal and mechanical requirements of the intended environment.

Edgeboard Connectors Part Context

This component is part of the TE Connectivity AMP EDGE series, which specializes in card edge connectors for various electronic applications. The 166087-4 specifically addresses needs for dual-edge termination with a fixed 8-contact count. It serves as a standardized interconnect solution within the broader AMP Connectors portfolio, focusing on reliable board-to-card interfaces.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. As the part is listed as obsolete, alternative sourcing may require consulting manufacturer obsolescence notices or identifying equivalent components based on pitch, position count, and termination type.
