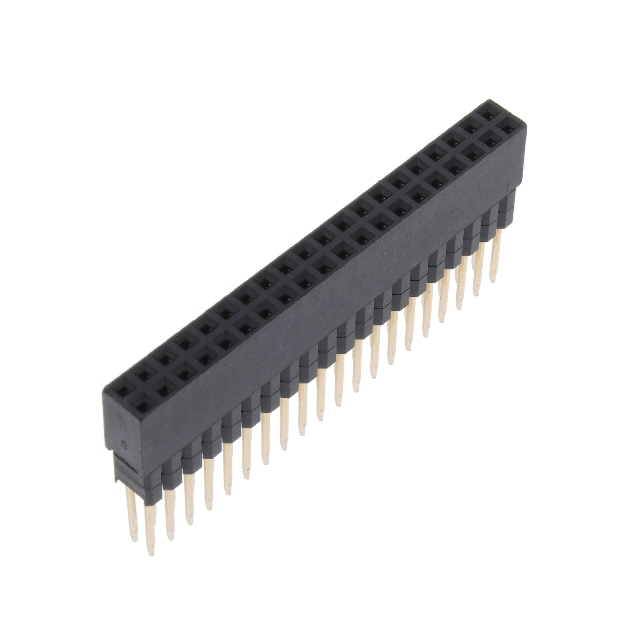

Headers, Receptacles, Female Sockets 16764 product image

16764

$2.93

Description：EXTENDED GPIO FEMALE HEADER - 2X
Series：-
Mfr：SparkFun Electronics
Package：Bulk

SKU:1785cff273ae Category: Headers, Receptacles, Female Sockets Brand: SparkFun Electronics

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

16764 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists SparkFun Electronics. Its product description is EXTENDED GPIO FEMALE HEADER - 2X. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 16764

Description：EXTENDED GPIO FEMALE HEADER - 2X
Series：-
Mfr：SparkFun Electronics
Package：Bulk
Connector Type：Header, Elevated
Contact Type：Forked
Style：Board to Board
Number of Positions：40
Number of Positions Loaded：All
Pitch - Mating：0.100" (2.54mm)
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：Flash
Insulation Color：Black
Insulation Height：0.531" (13.50mm)
Contact Length - Post：0.386" (9.80mm)
Operating Temperature：-40°C ~ 105°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Gold
Mated Stacking Heights：-
Ingress Protection：-
Features：-
Current Rating (Amps)：3A
Voltage Rating：-
