16890

Edgeboard Connectors Overview

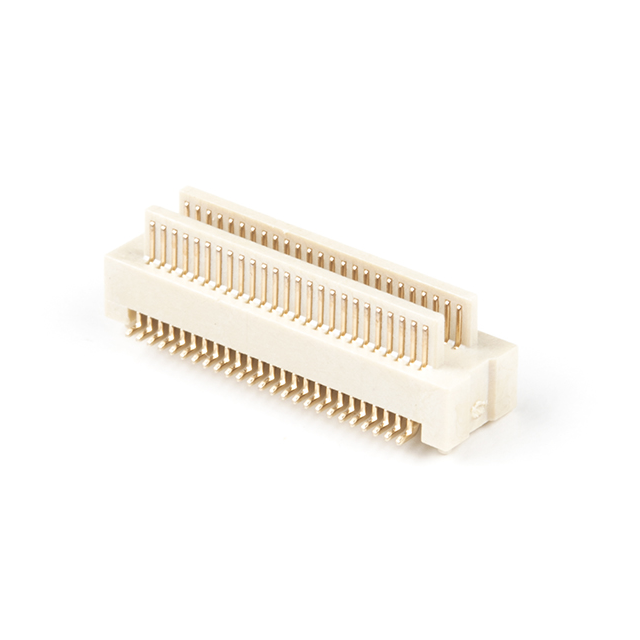

The SparkFun PRT-16890 is a connector component designed for electronic prototyping and development. It features phosphor bronze contacts with gold plating to ensure reliable signal transmission. The housing is constructed from liquid crystal polymer (LCP), providing structural integrity and thermal stability. This part serves as a fundamental interface element within SparkFun's ecosystem, facilitating connections between various modules and boards.

Edgeboard Connectors Feature Summary

• Gold-plated phosphor bronze contacts for conductivity
• Liquid crystal polymer housing material
• UL 94 V-0 flammability rating

Edgeboard Connectors Applications

• Electronic prototyping circuits
• Development board interconnections
• Modular hardware assembly

Edgeboard Connectors Procurement Notes

Verify the specific contact configuration and pin count against the official SparkFun datasheet before integration. Ensure compatibility with mating connectors in your design. Confirm that the LCP housing meets your environmental requirements. Cross-reference the UL 94 V-0 rating with safety standards applicable to your final product assembly.

Edgeboard Connectors Selection Notes

Select this component when a durable, high-conductivity connector is required for low-voltage signaling. The gold plating offers corrosion resistance suitable for repeated insertion cycles. The LCP material provides necessary heat resistance during soldering processes. Evaluate mechanical fitment constraints within your enclosure design prior to selection.

Edgeboard Connectors Part Context

This component belongs to SparkFun Electronics' range of electronic parts intended for individual projects and development. SparkFun focuses on improving adoption of IoT technologies by providing accessible modules and sensors. This specific part supports their goal of simplifying engineering essentials through standardized, reliable hardware interfaces.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify exact dimensional and electrical specifications if sourcing alternatives from other manufacturers.
