16BCF10R

Overview

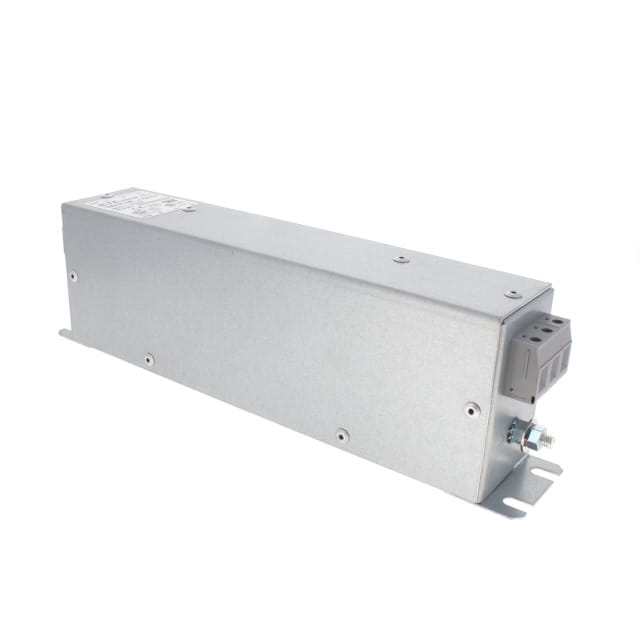

The TE Connectivity Corcom Filters 16BCF10R is a three-phase power line filter designed for chassis mounting. It supports phase-to-phase configurations and handles a rated current of 16A at voltages up to 250VAC. The component operates within a frequency range of 50/60Hz and features a two-stage filtering configuration. It utilizes terminal block connections for secure wiring. The unit is certified by Underwriters Laboratories (UR) and functions reliably in temperatures ranging from -10°C to 40°C. This model belongs to the BCF series, which is engineered for robust electromagnetic interference suppression in industrial environments.

Feature Summary

• Provides three-phase EMI/RFI noise attenuation through a two-stage internal architecture
• Engineered for direct chassis mounting with durable terminal block termination
• Supports phase-to-phase voltage applications for heavy-duty power systems

Applications

• Industrial inverter systems
• Power drive systems
• General machinery requiring three-phase noise suppression

Procurement Notes

Verify the specific datasheet version before ordering, as the 16BCF10R is listed as obsolete in some catalogs. Confirm that the terminal block interface matches your existing wiring harnesses. Ensure the chassis mounting dimensions align with your enclosure specifications. Check for RoHS compliance status if required by your project standards. Validate the UR certification requirements against your regional safety regulations.

Selection Notes

Select this component when three-phase noise reduction is critical for sensitive equipment. The two-stage design offers superior attenuation compared to single-stage alternatives. Terminal block connections facilitate easier maintenance than soldered options. Ensure the 16A current rating exceeds the maximum load of the protected circuit. Verify that the operating temperature range covers the environmental conditions of the installation site.

Part Context

This part belongs to the TE Connectivity Corcom BCF series, specialized for three-phase power line filtering. The series is widely used in industrial automation and motor control applications. It complements other Corcom filters like the 16FC10, though the latter is single-phase. The BCF series emphasizes high reliability and compact form factors for dense panel layouts.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. As the 16BCF10R is marked obsolete, consult TE Connectivity for current equivalent models or authorized replacements.
