16BCF6R

Overview

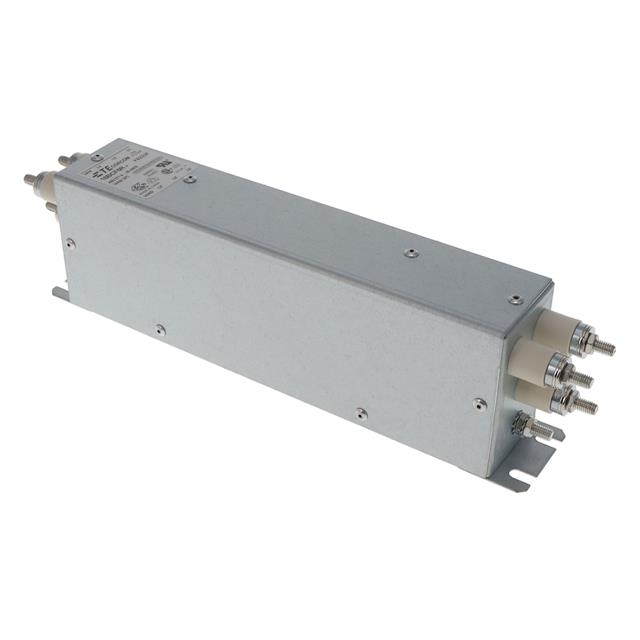

The 16BCF6R is a three-phase (Delta) EMC/EMI line filter manufactured by TE Connectivity Corcom Filters. It supports a current rating of 16 A and operates at frequencies of 50/60 Hz. The component features a two-stage filtering configuration and utilizes threaded post connections with an M5 specification for mounting.

Feature Summary

• Provides EMI/RFI suppression in three-phase Delta configurations
• Features a two-stage filtering architecture
• Utilizes threaded post termination style

Applications

• Industrial power conditioning systems
• Three-phase equipment requiring EMI suppression
• Medical device power inputs

Procurement Notes

Verify the specific datasheet for the 16BCF6R to confirm mechanical dimensions and certification status, as distributor listings may vary. Ensure compatibility with Delta phase requirements and M5 threaded post mounting constraints before procurement.

Selection Notes

Select this component for applications requiring three-phase Delta filtering with a 16 A capacity. Confirm that the M5 threaded post interface matches the system chassis design. Verify if the two-stage attenuation profile meets the specific noise reduction requirements of the target application.

Part Context

This part belongs to the TE Connectivity Corcom Filters portfolio, which specializes in EMI/RFI components for medical and industrial devices. The product line covers voltage ranges from 250V AC to 3000V AC and current ratings up to 2300A, offering various form factors including feedthroughs and line filters.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation.
