16DBCG5B

Overview

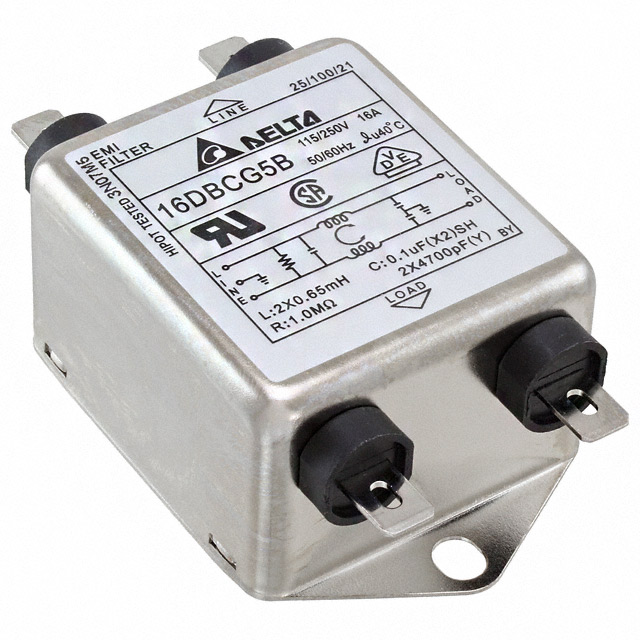

The Delta Electronics 16DBCG5B is a single-phase, single-stage power line filter designed for chassis mounting. It features a voltage rating of 115 VAC and 250 VAC with a current capacity of 16 A. The unit operates at frequencies of 50 Hz and 60 Hz and has a leakage current of 2 mA. Connections are made via tab connectors. The component holds UL, CSA, and VDE compliance certifications.

Feature Summary

• Single-stage filtering architecture for electromagnetic interference suppression
• Chassis mount design for secure installation
• Tab connector termination for straightforward wiring

Applications

• Industrial equipment power conditioning
• General purpose electronic systems requiring EMI/EMI filtration
• Power supply input stages

Procurement Notes

Verify the specific ordering suffix to ensure correct terminal configuration and certification requirements. Confirm end-of-life status as this model may be discontinued. Check for updated replacement components if long-term availability is required. Ensure mechanical dimensions match the intended chassis cutout before procurement.

Selection Notes

Select this component when a single-stage solution is sufficient for noise reduction requirements. Verify that the 16 A current rating meets the load demands. Ensure the chassis mounting style aligns with the enclosure design. Confirm that tab connectors are compatible with the available wiring terminals.

Part Context

This part belongs to the DB series of power line filters from Delta Electronics. It is categorized under general-purpose filters within the power condition subcategory. The product is distinct from multi-stage variants like the DP series.

Replacement Considerations

• 16DCGG5B
