16DCGG5B

Overview

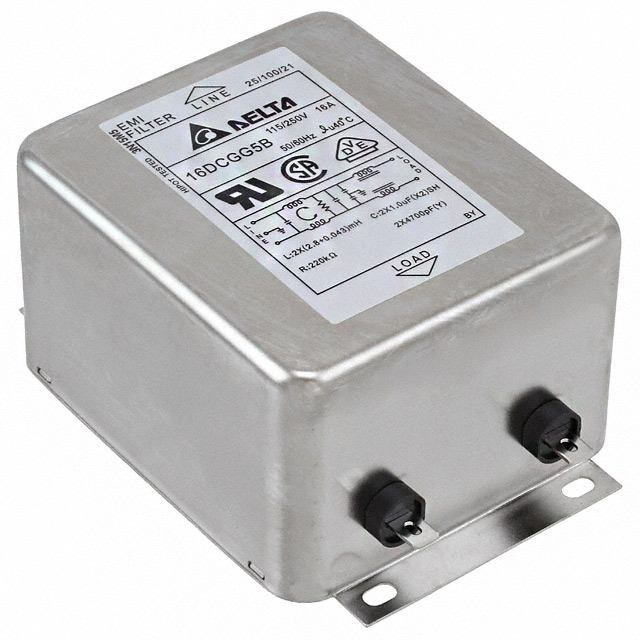

The Delta Electronics 16DCGG5B is a single-phase EMC/EMI power line filter module designed for chassis mounting. It features a two-stage configuration with quick connect terminals, supporting a rated current of 16 A at operating frequencies of 50 Hz and 60 Hz. The unit is rated for AC voltages of 115 V and 250 V. This component provides noise suppression for electrical circuits while maintaining robust mechanical stability through its base installation design.

Feature Summary

• Two-stage filtering architecture for enhanced electromagnetic interference suppression
• Quick connect terminal style for simplified circuit integration
• Chassis mount installation type ensuring secure physical positioning

Applications

• Industrial equipment power input stages
• Commercial machinery noise mitigation
• Electronic device EMI compliance filtering

Procurement Notes

Verify the specific datasheet version to confirm exact dimensional tolerances and terminal pinout configurations before integration. Ensure the mounting hardware matches the chassis specifications. Confirm that the operating environment temperature remains within the specified range to maintain filter performance and longevity. Cross-reference certification marks such as CSA, UR, or VDE against regional regulatory requirements.

Selection Notes

Select this model when a two-stage attenuation profile is required for single-phase AC lines up to 16 A. The quick connect interface suits applications prioritizing rapid assembly over soldered connections. Verify that the 115 V and 250 V voltage ratings align with the system's nominal supply levels. Consider the chassis mounting requirement for mechanical stability in high-vibration environments.

Part Context

This component belongs to Delta Electronics' series of power line filter modules. These units are engineered to meet stringent electromagnetic compatibility standards. The product line typically includes variants with different current ratings and stage configurations to address diverse noise profiles in industrial and commercial power distribution systems.

Replacement Considerations

Consult official substitution lists for equivalent two-stage filters with matching 16 A ratings and quick connect interfaces. Verify that any alternative part maintains identical voltage ratings and chassis mounting dimensions to ensure direct interchangeability without redesigning the enclosure.
