16DKCG5B

Overview

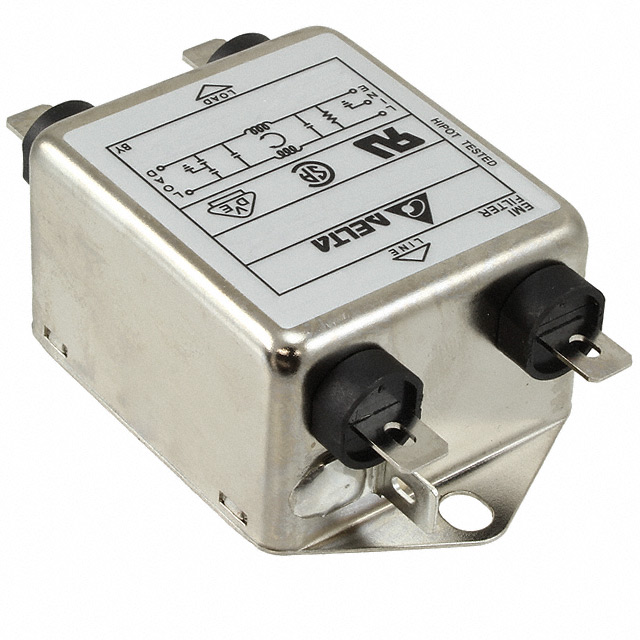

The Delta Electronics 16DKCG5B is a single-phase EMI/RFI power line filter module designed for general-purpose applications. It operates at rated AC voltages of 115V and 250V with a continuous current rating of 16 A. The unit features a single-stage configuration utilizing an inductance of 650µH to suppress electromagnetic interference on 50/60Hz lines. It employs quick connect terminals for circuit integration and supports chassis mounting. The component functions within a temperature range of -25°C to 100°C and holds CSA, UR, and VDE certifications.

Feature Summary

• Single-stage EMI suppression architecture for effective noise reduction
• Quick connect terminal interface for simplified wiring
• Chassis mount design for secure mechanical installation
• Multi-regulatory certification support including UL, CSA, and VDE

Applications

• General purpose power line filtering
• Industrial equipment EMI suppression
• Commercial machinery noise reduction

Procurement Notes

Verify the specific revision status before procurement as this component has been subject to discontinuation notifications. Confirm that the quick connect terminal style matches the existing harness requirements. Ensure the chassis mounting dimensions align with the enclosure design. Validate that the 16A current rating meets the system load specifications without derating issues under high ambient temperatures.

Selection Notes

Select this model when a single-stage solution is sufficient for the required attenuation levels. The 16A rating suits moderate power applications where space constraints favor a compact chassis mount form factor. Consider the operating temperature range if the deployment environment exceeds standard limits. Verify compatibility with both 115V and 250VAC systems depending on the regional power infrastructure.

Part Context

This component belongs to the Delta DP series of EMI filters. It shares the same physical footprint and terminal configuration as other models in the family, such as the 06DPCG5C, but differs in electrical ratings and stage configuration. The series is characterized by robust construction and compliance with international safety standards for industrial and commercial use.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Due to the End of Life notification, direct replacements may require redesigning the PCB or chassis layout to accommodate alternative filter modules with similar electrical characteristics.
