Product Detailed Parameters
- Description：LINE FILTER 115V/250VAC 16A CHAS
- Series：DP
- Mfr：Delta Electronics
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：115V, 250V
- Current：16 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：650µH
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

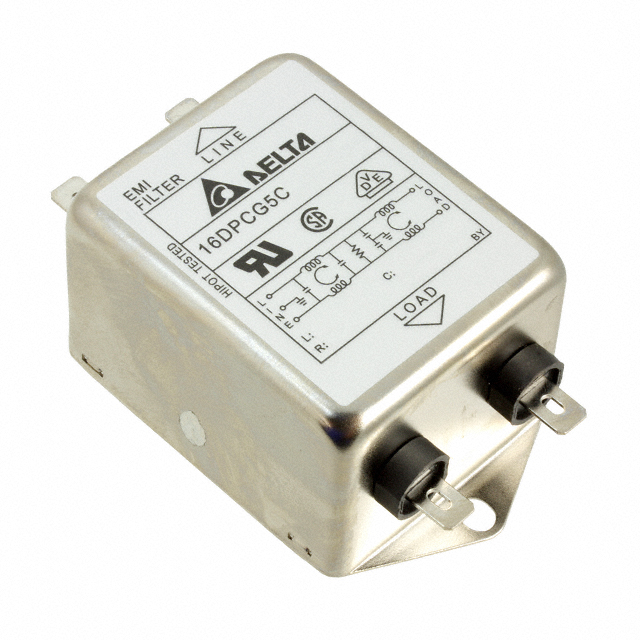

The Delta Electronics 16DPCG5C is a single-phase EMC/EMI power line filter module designed for chassis mounting. It supports AC voltage ratings of 115V and 250V with a current capacity of 16A at 50/60Hz frequencies. The component features a two-stage filtering configuration and utilizes quick connect tab terminals for circuit integration. Certified by CSA, UL, and VDE, it ensures compliance with international safety standards.
Feature Summary
- Two-stage EMI/EMC filtering architecture for enhanced noise suppression
- Chassis mount installation style for secure mechanical attachment
- Quick connect tab terminal interface for simplified wiring
- Certified to CSA, UL, and VDE safety standards
Applications
- Industrial control systems requiring EMI suppression
- Medical equipment power input stages
- General purpose electronic device power conditioning
Procurement Notes
Verify the specific revision status as the manufacturer has issued an End of Life notification dated June 1, 2026. Confirm final purchase dates and availability through authorized distributors before committing to production schedules. Ensure compatibility with existing chassis mounting holes and terminal spacing requirements during the procurement phase.
Selection Notes
Select this model when a single-phase, two-stage filter is required for 16A applications. Verify that the chassis mounting footprint matches the design enclosure. Ensure the quick connect terminal type aligns with the mating connector specifications in the system architecture.
Part Context
This component belongs to the DP series of power line filters manufactured by Delta Electronics. It serves as a specialized module for electromagnetic interference reduction in AC power lines. The product is distinct from single-stage variants within the same family due to its two-stage configuration.
Replacement Considerations
Check for direct substitutes within the DP series or equivalent two-stage models from other manufacturers. Verify that replacement parts maintain the same 16A rating, 115V/250VAC voltage support, and chassis mounting dimensions.
