16DPCS5C

Overview

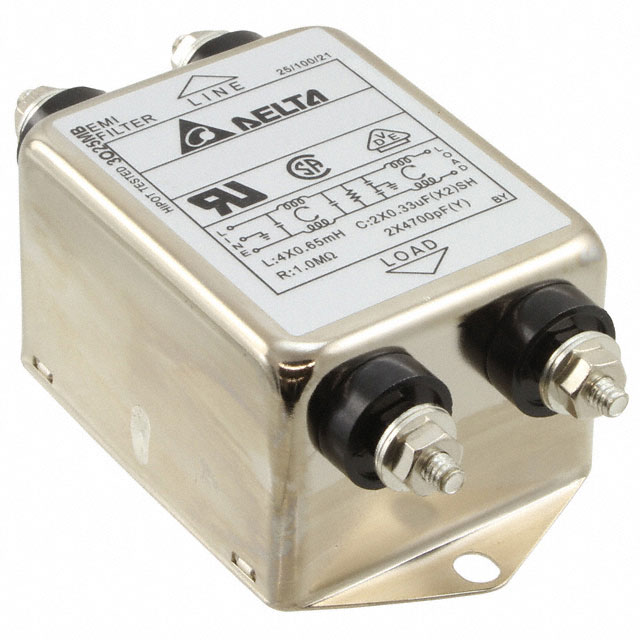

The Delta Electronics 16DPCS5C is a single-phase, two-stage power line filter designed for chassis mounting. It supports an operating frequency of 50 Hz and 60 Hz with a voltage rating of 115 VAC to 250 VAC. The unit handles a current rating of 16 A and utilizes screw-screw terminal connections. Leakage current ranges from 0.4 mA to 0.8 mA.

Feature Summary

• Two-stage filtering architecture for enhanced switching transient suppression
• Chassis mount design with screw terminals for secure installation
• Single-phase configuration suitable for standard AC power lines

Applications

• Industrial equipment requiring EMI/EMC compliance
• Power supply input stages
• Electronic devices sensitive to line noise

Procurement Notes

Verify the specific leakage current requirement against the datasheet range of 0.4 to 0.8 mA. Confirm that the chassis mounting style and screw-screw termination are compatible with the enclosure design. Ensure the 16 A current rating meets the system load requirements without exceeding limits.

Selection Notes

Select this component when a two-stage filter is required for single-phase applications. The 16 A rating distinguishes it from lower-current variants in the DP series. Verify that the 115-250 VAC input range matches the local power distribution standards. Consider the chassis mount form factor if panel space allows for direct screw attachment.

Part Context

This model belongs to the Delta Electronics DP series of power line filters. It is categorized as a switching transient filter intended for electromagnetic interference reduction. The component serves as a passive protection device placed at the AC input of electronic systems to prevent conducted emissions.

Replacement Considerations

Check for other models within the Delta DP series that offer similar current ratings but different stage configurations. Verify compatibility with existing mounting hardware before substituting.
