Product Detailed Parameters
- Description：LINE FILTER 115V/250VAC 16A CHAS
- Series：DP
- Mfr：Delta Electronics
- Package：Box
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：115V, 250V
- Current：16 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

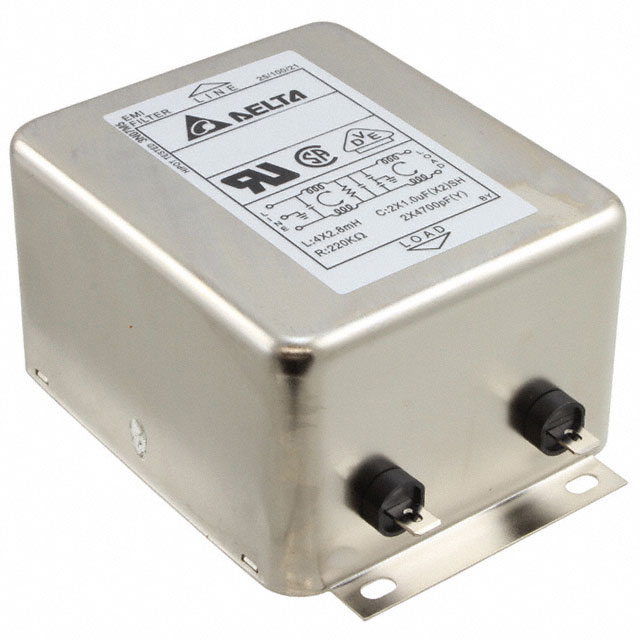

The Delta Electronics 16DPGG5B is a single-phase, two-stage power line filter module designed for chassis mounting. It supports AC voltage ratings of 115 VAC and 250 VAC with a continuous current rating of 16 A. The component operates at standard frequencies of 50 Hz and 60 Hz. It utilizes quick connect tab connectors for termination and is certified by UL, CSA, and VDE agencies.
Feature Summary
- Two-stage filtering architecture for enhanced noise suppression
- Chassis mount design for secure installation
- Quick connect tab terminals for simplified wiring
Applications
- Industrial equipment power conditioning
- Medical device power supply input stages
- General purpose electronic systems requiring EMI/RFI mitigation
Procurement Notes
Verify the specific datasheet revision and certification status (UL, CSA, VDE) prior to procurement. Confirm that the quick connect terminal dimensions match the mating connector specifications in the target assembly. Ensure the chassis mounting hole pattern aligns with the mechanical drawing provided in the official documentation.
Selection Notes
Select this model when a two-stage attenuation profile is required for 16 A applications at 115 VAC or 250 VAC. Compare leakage current specifications against safety standards if low leakage is critical. Verify that the physical size and mounting style fit within the available enclosure space compared to single-stage alternatives.
Part Context
This component belongs to the Delta DB/DP series of power line filters. It shares the same electrical ratings as the 16DBCG5B but differs in internal circuit topology, offering two-stage filtering instead of one-stage. It is functionally similar to the 16DCGG5B but distinguished by its specific stage configuration and terminal type.
Replacement Considerations
The 16DBCG5B serves as a functional substitute with identical current and voltage ratings, though it provides only single-stage filtering. The 16DCGG5B is another alternative within the same family, sharing the 16A rating and chassis mount form factor.
