Product Detailed Parameters
- Description：LINE FILTER 440VAC 16A CHASS MNT
- Series：KEH-BS
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：16 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

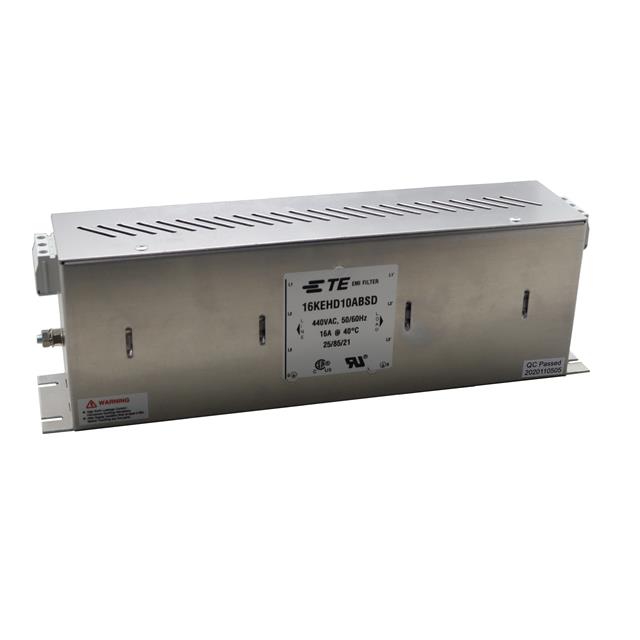

The 16KEHD10ABSD is a three-phase EMI/EMC power line filter manufactured by TE Connectivity Corcom. It supports a rated voltage of 440 VAC and a current rating of 16 A at operating frequencies of 50 Hz and 60 Hz. The unit features a two-stage filtering configuration with terminal block connections for chassis mounting. Physical dimensions are 250 mm in length, 70 mm in width, and 110 mm in height. It has a maximum leakage current of 15 mA and operates within a temperature range of -25 °C to +85 °C. The component holds UL and CSA compliance certifications.
Feature Summary
- Two-stage attenuation architecture for enhanced noise suppression
- Chassis mount design with terminal block termination
- Compliant with UL and CSA safety standards
Applications
- Industrial machinery power conditioning
- Three-phase equipment EMC mitigation
- Power supply input filtering
Procurement Notes
Verify the specific suffix 'D' against official documentation to confirm exact termination style and mounting hardware specifications. Confirm availability status as distribution channels may list obsolete or discontinued inventory. Ensure the application environment matches the specified thermal and electrical ratings before procurement.
Selection Notes
Select this model for applications requiring 16 A capacity in a three-phase delta configuration. Verify that the chassis mounting footprint accommodates the specified physical dimensions. Ensure the system voltage does not exceed the 440 VAC rating. Consider the terminal block interface requirements for wiring compatibility.
Part Context
This component belongs to the KEH series of power line filters from TE Connectivity Corcom. The series provides general-purpose EMI/EMC filtration for industrial environments. The part number indicates specific electrical ratings and mechanical configuration within the broader product family.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult manufacturer documentation for direct replacements or cross-reference guides.
