16KEHD10BBSD

Overview

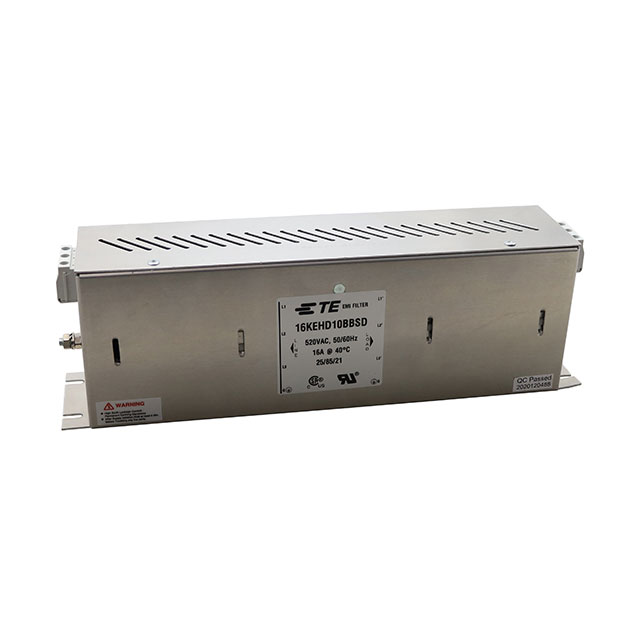

The 16KEHD10BBSD is a three-phase delta EMC/EMI power line filter manufactured by TE Connectivity Corcom Filters. It supports a rated voltage of 520 VAC and a current rating of 16 A at operating frequencies of 50 Hz and 60 Hz. The unit features a two-stage configuration with terminal block termination for chassis mounting. Physical dimensions are 250 mm in length, 45 mm in width, and 85 mm in height. It operates within a temperature range of -25°C to +85°C.

Feature Summary

• Three-phase delta topology for industrial power applications
• Two-stage EMI/EMC filtering configuration
• Chassis mount design with terminal block connections

Applications

• Industrial machinery power conditioning
• Three-phase motor drive systems
• Factory automation equipment

Procurement Notes

Verify the specific suffix 'BBSD' against the manufacturer datasheet to confirm exact terminal block type and mounting hardware specifications. Confirm RoHS compliance status and REACH SVHC declarations prior to integration. Ensure the chassis mounting holes align with the specified physical dimensions of 250 x 45 x 85 mm during mechanical design.

Selection Notes

Select this component for applications requiring 16 A capacity on a 520 VAC three-phase delta system. The two-stage design provides enhanced noise attenuation compared to single-stage units. Verify that the operating environment remains within the -25°C to +85°C thermal limits. Terminal block termination requires compatible wiring methods distinct from screw or PCB mount alternatives.

Part Context

This part belongs to the KEH-BS series of power line filters from TE Connectivity Corcom Filters. The series is designed for robust industrial environments requiring high-current three-phase filtration. The product serves as an EMI/EMC solution for sensitive electronic loads connected to noisy power sources.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation.
