16KEMS10ABSD

Overview

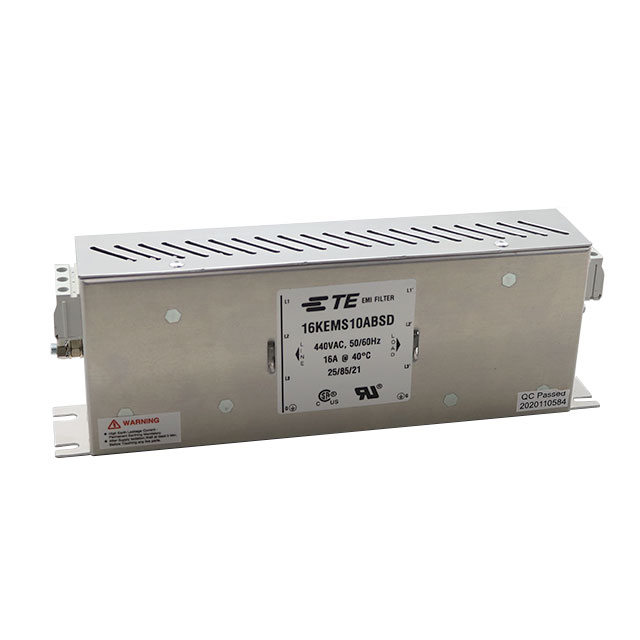

The TE Connectivity Corcom Filters 16KEMS10ABSD is a three-phase EMI/EMC power line filter designed for industrial applications. It features a chassis mount configuration with terminal block connections for both input and output. The unit supports a continuous operating voltage of 440 VAC at 50 Hz or 60 Hz frequencies, with a rated current capacity of 16 A. Physical dimensions are 250 mm in length, 45 mm in width, and 85 mm in height. It exhibits a leakage current of 5 mA and operates within a temperature range of -25°C to +85°C. The component holds UL and CSA compliance certifications.

Feature Summary

• Provides electromagnetic interference mitigation for three-phase power systems
• Utilizes a delta configuration with single-phase high performance design
• Features robust chassis mounting for secure industrial installation

Applications

• Industrial automation machinery power conditioning
• Climate control system power distribution
• General industrial equipment requiring EMI suppression

Procurement Notes

Verify the obsolete status of this part number before procurement planning. The manufacturer has indicated that this item will be discontinued. Ensure compatibility with existing chassis mounts and terminal block wiring schemes. Confirm that the 16 A rating and 440 VAC specifications meet the specific load requirements of the target application to avoid performance issues during transition.

Selection Notes

Select this component when a three-phase solution with terminal block termination is required for chassis-mounted installations. The 16 A current rating suits moderate power loads. Verify that the 5 mA leakage current aligns with safety standards for the specific environment. Consider the physical footprint of 250x45x85 mm for enclosure space allocation. Ensure the operating temperature range covers the expected environmental conditions.

Part Context

This model belongs to the KEM series of power line filters from TE Connectivity's Corcom brand. The series focuses on providing reliable EMI/EMC filtering for AC power lines. The KEM-BS variant specifically denotes the chassis mount style with terminal block interfaces. This product line is engineered for durability in demanding industrial settings where stable power quality is critical for sensitive electronic equipment operation.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Due to the obsolete status, direct replacement verification requires consulting official TE Connectivity engineering support for current equivalent models.
