16KEMS10AFPD

Overview

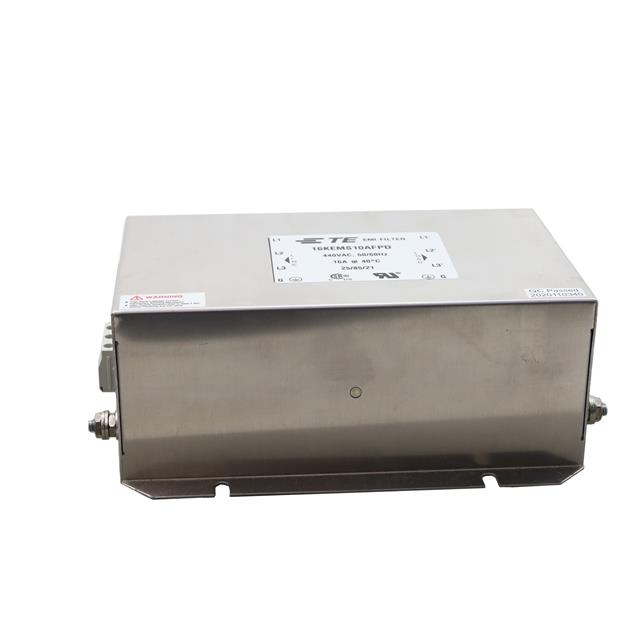

The TE Connectivity Corcom Filters 16KEMS10AFPD is a three-phase superior performance EMI filter designed for chassis mounting. It features a single-stage configuration with a voltage rating of 440 VAC and a current capacity of 16 A. The unit operates at frequencies of 50 Hz and 60 Hz, utilizing quick connect and screw termination types. Physical dimensions are 202 mm in length, 120 mm in width, and 80 mm in height. It has a leakage current of 18 mA and complies with UL and CSA standards.

Feature Summary

• Provides superior performance electromagnetic interference filtering for three-phase delta systems
• Supports dual termination methods using quick connect and screw connections
• Engineered for direct chassis mounting applications

Applications

• Industrial power conditioning equipment
• Three-phase motor drive systems
• General purpose power line filtering

Procurement Notes

Verify component authenticity through authorized channels as the part status is discontinued. Confirm technical specifications against official datasheets before integration. Check for obsolescence notifications and ensure replacement strategies are in place due to limited availability.

Selection Notes

Select this model for three-phase applications requiring 16 A at 440 VAC. Ensure chassis mounting space accommodates the specified dimensions. Verify that quick connect and screw terminals match existing wiring infrastructure. Confirm compliance requirements align with UL and CSA standards.

Part Context

This component belongs to the Corcom KEM series of power line filters. It is manufactured by TE Connectivity / Corcom. The part number alias is 1-1609967-6. It is categorized under power condition subcategories within the broader EMI/RFI filter portfolio.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer resources for discontinuance notifications or alternative series recommendations.
