Product Detailed Parameters
- Description：LINE FILTER 520VAC 16A CHASS MNT
- Series：KEM-BS
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：16 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

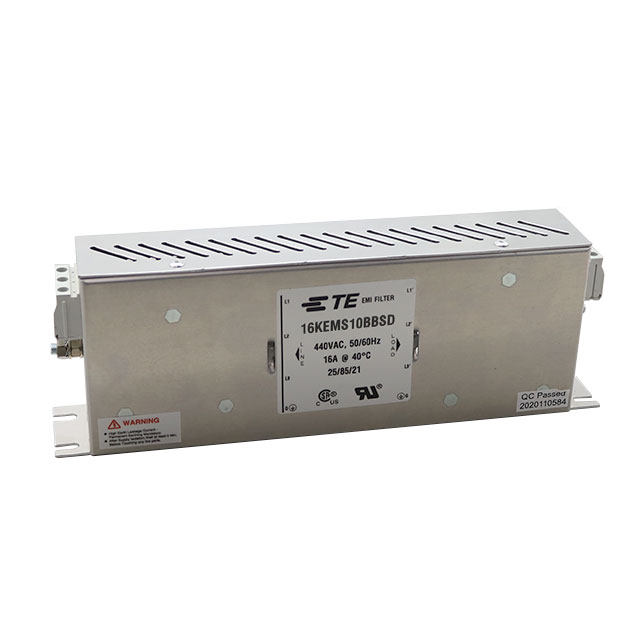

The 16KEMS10BBSD is a three-phase (Delta) EMI/EMC power line filter manufactured by TE Connectivity Corcom. It supports a rated current of 16 A and operates at voltages up to 520 VAC. Designed for single-stage filtering, the unit utilizes terminal block connections for secure wiring. The device features chassis mounting with flange-style installation. It functions within a frequency range of 50 Hz to 60 Hz and maintains an operating temperature range from -40°C to +85°C.
Feature Summary
- Provides single-stage electromagnetic interference suppression for three-phase Delta configurations
- Utilizes robust terminal block termination for reliable electrical connectivity
- Engineered for direct chassis mounting via flange-style mechanical interface
Applications
- Industrial machinery power distribution systems
- Three-phase motor drive input stages
- General purpose industrial equipment requiring EMI mitigation
Procurement Notes
Verify the specific voltage rating requirement against the datasheet, as similar models in this series may support different AC voltages such as 440 VAC or 520 VAC. Confirm that the terminal block connection type matches the existing cabling infrastructure. Ensure the chassis mounting dimensions align with the available panel space. Check for any RoHS compliance documentation if required by local regulations.
Selection Notes
Select this component when a single-stage solution is sufficient for noise reduction requirements in three-phase Delta circuits. The 16 A current rating suits moderate power applications. Consider the physical dimensions and flange mounting style during mechanical design integration. Verify thermal management capabilities given the maximum operating temperature limit of +85°C.
Part Context
This model belongs to the KEMS series of power line filters from TE Connectivity Corcom. The series offers various current ratings and voltage options for industrial environments. The KEMS line focuses on providing compact, high-performance filtering solutions for sensitive electronic loads connected to noisy power grids.
Replacement Considerations
The 16KEMS10ABSD is a comparable alternative within the same product family. Both share similar current ratings and mounting styles but differ in voltage specifications. Verify compatibility before substitution.
