16KEMS10BFPD

Overview

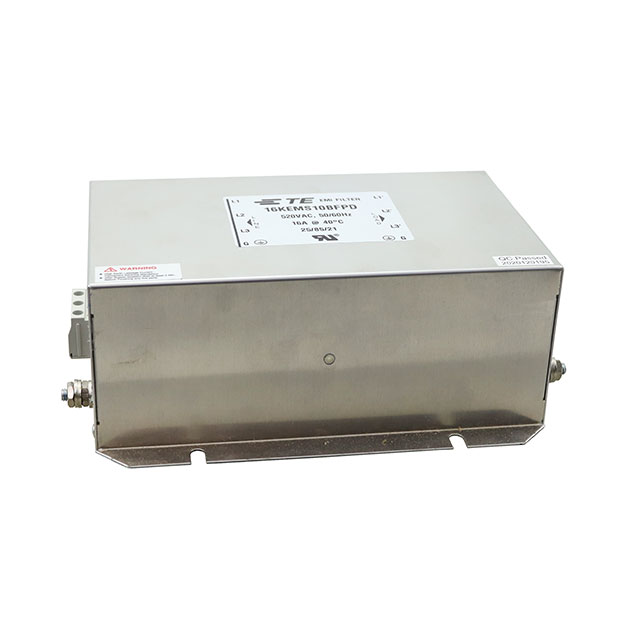

The TE Connectivity Corcom Filters 16KEMS10BFPD is a three-phase power line filter designed for industrial applications. It features a rated voltage of 520 VAC and a current rating of 16 A. The unit utilizes chassis mount installation with terminal block termination. Certified by UL and CSA, it operates within a temperature range of -25°C to +85°C at 50/60 Hz. Dimensions are 250 mm length, 45 mm width, and 85 mm height.

Feature Summary

• Provides electromagnetic interference mitigation for three-phase power systems
• Engineered for high-performance noise suppression in demanding environments
• Supports robust chassis mounting for secure industrial integration

Applications

• Industrial automation machinery
• Climate control systems
• General purpose three-phase equipment

Procurement Notes

Verify the specific suffix against official documentation, as variants like 16KEMS10ABSD exist with different voltage ratings. Confirm end-of-life status with the manufacturer prior to finalizing procurement plans. Ensure compatibility with existing chassis mounting infrastructure and terminal block wiring requirements during the acquisition phase.

Selection Notes

Select this component when a three-phase filter is required for 520 VAC systems. Verify that the 16 A current rating aligns with the load requirements. Ensure the chassis mount form factor fits the available enclosure space. Check for necessary certifications such as UL or CSA depending on regional compliance standards.

Part Context

This model belongs to the KEM series of power line filters from TE Connectivity Corcom. The series offers various configurations for single and three-phase applications. The KEM series is recognized for providing effective EMI/EMC filtering solutions suitable for harsh industrial environments and heavy-duty power conditioning tasks.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material.
