Product Detailed Parameters
- Description：LINE FILTER 440VAC 16A CHASS MNT
- Series：KEP-BS
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：16 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

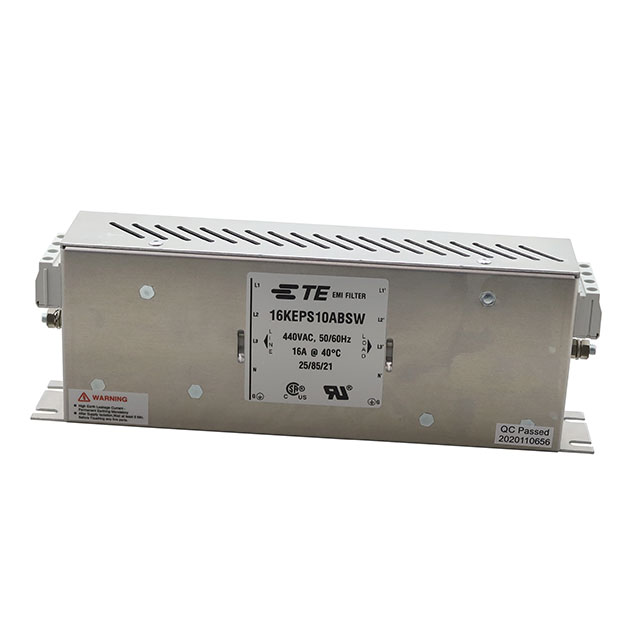

The 16KEPS10ABSW is a three-phase superior performance EMI filter manufactured by TE Connectivity Corcom. It features a Wye configuration with a voltage rating of 440 VAC and a current capacity of 16 A. Designed for operation at 50 Hz or 60 Hz, the unit utilizes chassis mounting with quick connect and screw termination types. The component exhibits a leakage current of 5 mA and complies with UL and CSA standards.
Feature Summary
- Provides superior performance electromagnetic interference filtering for three-phase power lines
- Supports chassis mounting with versatile quick connect and screw termination options
- Engineered for industrial environments operating at standard 50 Hz and 60 Hz frequencies
Applications
- Industrial machinery power conditioning
- Three-phase motor drive systems
- Commercial power distribution units
Procurement Notes
Verify component authenticity through authorized TE Connectivity channels due to potential availability constraints. Confirm that the specific Wye configuration and 16 A rating align with system requirements. Ensure compliance with local safety regulations regarding UL and CSA certifications before integration into final equipment designs.
Selection Notes
Select this model when superior attenuation is required for three-phase applications. The 16 A rating suits moderate load scenarios. Verify terminal compatibility with existing wiring harnesses. Consider physical dimensions for chassis integration. Evaluate leakage current specifications against sensitive load requirements.
Part Context
This component belongs to the KEP series of power line filters from TE Connectivity Corcom. The series offers various current ratings and configurations for industrial noise suppression. The 16KEPS10ABSW specifically addresses high-performance needs in three-phase systems requiring robust EMI reduction.
Replacement Considerations
No direct public substitute part numbers are confirmed for this specific model. Consult TE Connectivity for updated equivalents if discontinuation occurs.
