Product Detailed Parameters
- Description：LINE FILTER 440VAC 16A CHASS MNT
- Series：KEP
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：16 A
- Frequency - Operating：50/60Hz
- Applications：Converter
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

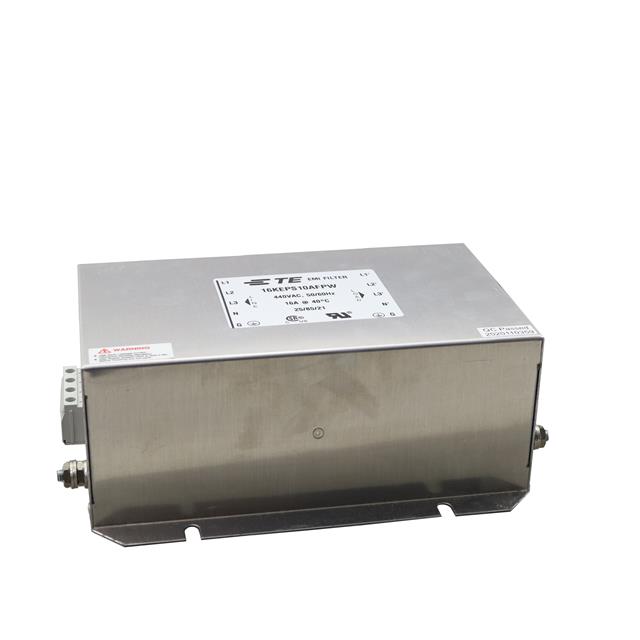

The 16KEPS10AFPW is a three-phase power line filter manufactured by TE Connectivity / Corcom. It features a single-stage design rated for 440 VAC and 16 A current. The unit supports operation at 50 Hz and 60 Hz frequencies with a maximum leakage current of 8.5 mA. It utilizes terminal block connections and is designed for chassis mounting. The component complies with UL, CSA, and VDE standards.
Feature Summary
- Provides electromagnetic interference mitigation for three-phase power systems
- Designed for robust performance in industrial power conditioning applications
- Supports standard AC frequency operations
Applications
- Industrial automation machinery protection
- Three-phase power distribution systems
- Electromagnetic compatibility (EMC) compliance in electrical enclosures
Procurement Notes
Verify the specific manufacturer part number against official TE Connectivity documentation to confirm availability status. This component may be subject to discontinuation or limited supply conditions. Ensure that the voltage rating of 440 VAC and current rating of 16 A match the target application requirements before procurement. Cross-reference technical drawings for chassis mounting dimensions and terminal block specifications.
Selection Notes
Select this model for applications requiring a single-stage EMI filter for three-phase circuits operating at 440 VAC. The 16 A current rating defines the maximum continuous load capacity. Verify that the chassis mount style and terminal block termination method are compatible with the existing enclosure design. Confirm that the 8.5 mA leakage current meets safety isolation requirements for the specific installation environment.
Part Context
This component belongs to the KEP series of power line filters from TE Connectivity / Corcom. The series offers various current ratings for three-phase applications. The 16KEPS10AFPW specifically addresses lower current requirements within the 440 VAC class. It shares common design characteristics with other models in the lineup, such as standardized mounting profiles and similar filtering topologies.
Replacement Considerations
Consult official TE Connectivity substitution guides for verified alternative part numbers. Generic equivalents may not match the specific leakage current or attenuation characteristics. Ensure any replacement maintains the same voltage, current, and mounting specifications.
