Product Detailed Parameters
- Description：LINE FILTER 520VAC 16A CHASS MNT
- Series：KEP
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：16 A
- Frequency - Operating：50/60Hz
- Applications：Converter
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

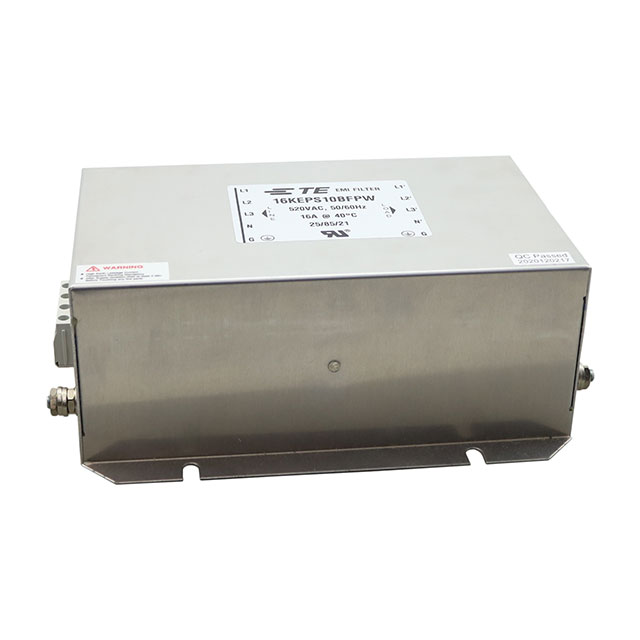

The 16KEPS10BFPW is a three-phase superior performance EMI filter manufactured by TE Connectivity / Corcom. It operates at a rated voltage of 520 VAC and supports a current rating of 16 A at frequencies of 50 Hz and 60 Hz. Designed for chassis mounting, the unit features quick connect and screw termination types with a leakage current of 8.5 mA. The physical dimensions are 202 mm in length, 135 mm in width, and 80 mm in height. It functions within an operating temperature range of -25 C to +85 C and holds UL and CSA compliance certifications.
Feature Summary
- Provides high-performance electromagnetic interference suppression across all three phases using a Wye configuration.
- Engineered for robust chassis mounting with combined quick connect and screw terminal interfaces.
Applications
- Protection of sensitive industrial equipment from electrical noise
- Three-phase power line filtering in manufacturing environments
- EMI mitigation in systems requiring 520 VAC operation
Procurement Notes
Verify component authenticity through authorized TE Connectivity channels due to potential supply chain variations. Confirm that the specific order suffix matches the required termination style and certification requirements. Ensure compatibility with existing chassis mounting hardware and terminal block specifications before integration into final assemblies.
Selection Notes
Select this model when a three-phase Wye configuration is required for 520 VAC systems. The 16 A current rating suits moderate load applications. Verify that the chassis mount form factor fits the enclosure constraints. Ensure the operating temperature range meets environmental conditions. Check if UL and CSA certifications satisfy regulatory standards for the target market.
Part Context
This component belongs to the KEP series of power line filters from TE Connectivity / Corcom. The series offers various current ratings and voltage configurations for three-phase applications. The 16KEPS10BFPW specifically addresses needs for 16 A capacity at 520 VAC. It shares design characteristics with other models in the lineup but differs in electrical ratings and termination options.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult TE Connectivity technical support for direct replacements or updated equivalents within the KEP series.
