16KEVD10ABSW

Overview

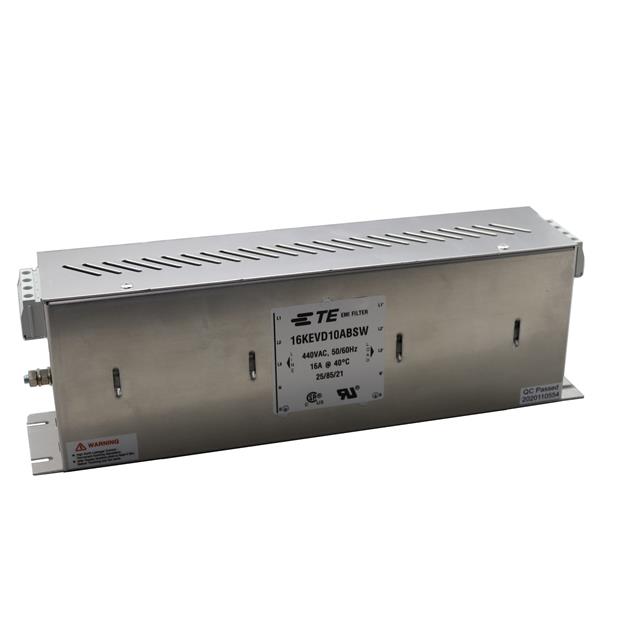

The 16KEVD10ABSW is a three-phase EMC/EMI power line filter manufactured by TE Connectivity Corcom Filters. It features a chassis mount design with terminal block termination for secure installation. The unit is rated for 16 A current and 440 VAC voltage at 50 Hz or 60 Hz operating frequencies. Physical dimensions are 250 mm in length, 45 mm in width, and 85 mm in height. It complies with UL and CSA safety standards.

Feature Summary

• Designed to suppress electromagnetic interference and noise on industrial power lines
• Provides two-stage filtering performance for enhanced signal integrity
• Constructed for robust chassis mounting applications

Applications

• AC/DC Drives
• HVAC Systems
• Robotics
• UPS Systems

Procurement Notes

Verify component authenticity through authorized TE Connectivity channels. Confirm that the specific suffix matches project requirements as variations may exist within the product family. Check for end-of-life status updates prior to finalizing procurement plans to ensure long-term supply availability.

Selection Notes

Select this model when a three-phase solution is required for 440VAC systems carrying up to 16A. Ensure the chassis mounting style and terminal block connections align with the enclosure design. Verify that the leakage current and insertion loss specifications meet the specific EMI suppression needs of the application.

Part Context

This component belongs to the KEV series of power line filters from TE Connectivity Corcom. The series offers various configurations for three-phase applications, ranging from standard to very high-performance levels. This specific part represents a balanced option for general industrial noise reduction.

Replacement Considerations

Consult official TE Connectivity documentation for direct substitutes. Cross-reference electrical ratings and physical dimensions before adopting alternative components.
