Product Detailed Parameters
- Description：LINE FILTER 520VAC 16A CHASS MNT
- Series：KEV-BS
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：16 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

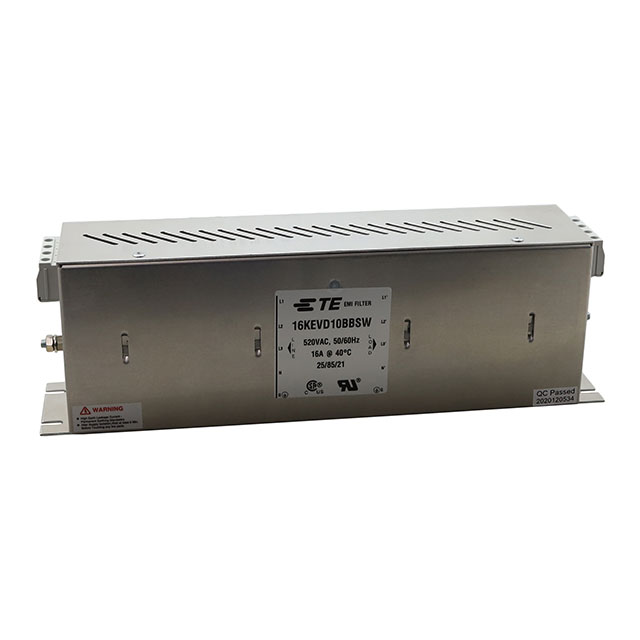

The TE Connectivity Corcom Filters 16KEVD10BBSW is a three-phase high-performance EMI filter designed for chassis mounting. It features a two-stage configuration with terminal block connections, rated for 16 A current and 520 VAC voltage at 50/60 Hz operating frequencies.
Feature Summary
- Three-phase Wye configuration for balanced power line filtering
- Two-stage design providing enhanced electromagnetic interference suppression
- Chassis mount construction with terminal block termination
Applications
- Industrial power distribution systems
- Medium-power industrial machinery
- Inverter and power drive system integration
Procurement Notes
Verify component authenticity through authorized TE Connectivity channels due to potential supply chain variations. Confirm technical specifications against official datasheets prior to integration. Ensure compatibility with existing chassis mounting hardware and terminal block requirements for the specific application environment.
Selection Notes
Select this model for applications requiring robust three-phase EMI attenuation in industrial settings. The 16 A rating suits medium-power loads, while the 520 VAC specification supports standard industrial voltage levels. Evaluate thermal management needs based on chassis installation constraints and ambient operating temperatures.
Part Context
This component belongs to the KEV series of power line filters from TE Connectivity Corcom Filters. The series is engineered for high-performance electromagnetic interference reduction in demanding industrial environments, offering reliable noise suppression for sensitive electronic equipment connected to three-phase power sources.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Verify cross-reference availability directly with TE Connectivity or authorized distributors before considering alternative components.
