Product Detailed Parameters
- Description：LINE FILTER 480VAC 16A CHASS MNT
- Series：TDV
- Mfr：Delta Electronics
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：480V
- Current：16 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：cURus, ENEC, SEMKO
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：L1 - 1.77mH, L2 - 9µH
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

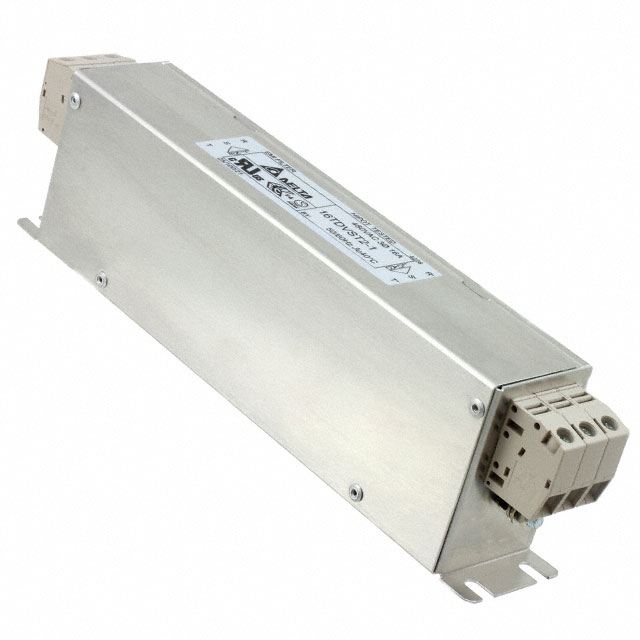

The Delta Electronics 16TDVST2-1 is a three-phase, three-wire power line filter designed for chassis mounting. It features a vertical configuration with terminal block termination. The unit is rated for 480VAC and supports a continuous current of 16A. Operating within a temperature range of -25°C to 100°C, it utilizes a two-stage filter topology. Key electrical parameters include an inductance of 1.77mH for L1 and 9µH for L2, operating at standard 50/60Hz frequencies.
Feature Summary
- Provides electromagnetic interference suppression for three-phase systems
- Utilizes a two-stage filtering architecture for enhanced noise reduction
- Designed for secure chassis mounting with terminal block connections
Applications
- Industrial automation equipment requiring EMI mitigation
- Three-phase power distribution systems
- Chassis-mounted electronic enclosures
Procurement Notes
Verify the specific suffix designation as the component lifecycle status indicates scheduled obsolescence. Confirm that the terminal block interface matches the system requirements. Ensure the voltage and current ratings align with the operational environment before procurement.
Selection Notes
Select this model for applications requiring a compact, vertically oriented filter for three-phase circuits. The terminal block termination simplifies wiring integration compared to screw or clamp types. Verify compatibility with the 480VAC supply network and ensure adequate thermal clearance for the specified operating temperature range.
Part Context
This component belongs to the TDV series of power line filters from Delta Electronics. It serves as a specialized solution for managing conducted emissions in industrial settings. The design focuses on reliability and ease of installation within constrained chassis spaces.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Due to the scheduled obsolescence status, alternative sourcing should be evaluated carefully against technical specifications.
