1700820216

Edgeboard Connectors Overview

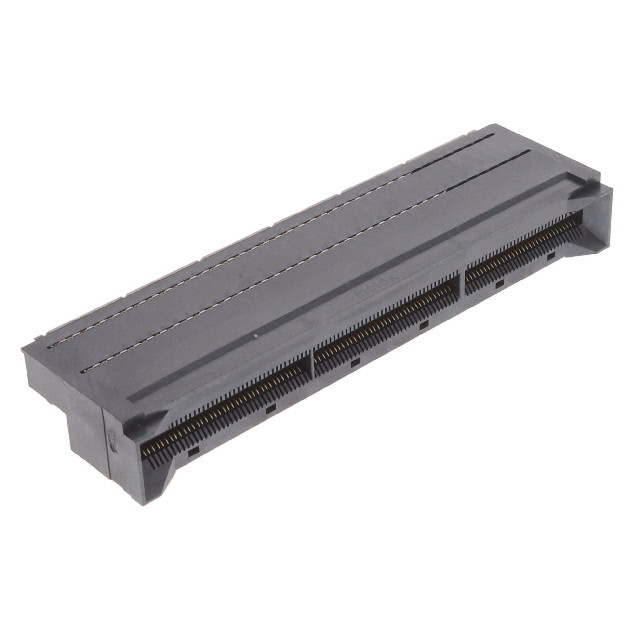

The Molex 1700820216 is an EdgeLine CoPlanar+ dual-edge card edge connector designed for high-speed data transmission. It features 216 positions with a 0.092-inch (2.35mm) pitch and supports signal speeds up to 15 Gbps. The connector accommodates a PCB thickness of 0.093 inches (2.36mm) and utilizes gold-plated contacts for reliable performance. Constructed with LCP insulation, it operates within a temperature range of -40°C to 85°C and meets RoHS 3 compliance standards.

Edgeboard Connectors Feature Summary

• Supports high-speed data transmission up to 15 Gbps using CoPlanar+ technology
• Dual-edge female configuration with board lock feature for secure installation
• Gold-plated contacts ensure durability and low contact resistance
• Compatible with standard 0.093-inch thick printed circuit boards

Edgeboard Connectors Applications

• High-speed data communication systems requiring 15 Gbps throughput
• Server backplanes and storage arrays utilizing dual-edge card interfaces
• Industrial control systems operating in extreme temperature environments
• Telecommunications infrastructure equipment

Edgeboard Connectors Procurement Notes

Verify component authenticity through authorized Molex distributors or certified partners. Confirm that the received parts match the specified 216-position dual-edge configuration and RoHS 3 compliance status. Check for any product change notices related to packaging or material substitutions. Ensure storage conditions maintain moisture sensitivity level 1 integrity prior to assembly.

Edgeboard Connectors Selection Notes

Select this connector when designing systems requiring high-density interconnects with proven high-speed signal integrity. The 0.092-inch pitch allows for compact board layouts while maintaining robust mechanical stability. Consider the dual-edge design if space constraints require connections on both sides of the card. Verify compatibility with existing PCB fabrication capabilities for the specified 0.093-inch thickness.

Edgeboard Connectors Part Context

This component belongs to the Molex EdgeLine series, specifically the CoPlanar+ variant optimized for high-frequency applications. The 170082 family provides standardized dimensions and electrical characteristics for industrial and commercial electronics. This specific part number represents a dual-edge configuration within the broader portfolio of card edge connectors.

Edgeboard Connectors Replacement Considerations

No direct public substitute part numbers are confirmed for this discontinued component. Evaluate alternative high-speed card edge connectors from the same manufacturer series that match the 216-position count and 0.092-inch pitch specifications. Ensure mechanical footprint and electrical performance requirements align before considering cross-references.
