Headers, Receptacles, Female Sockets Overview

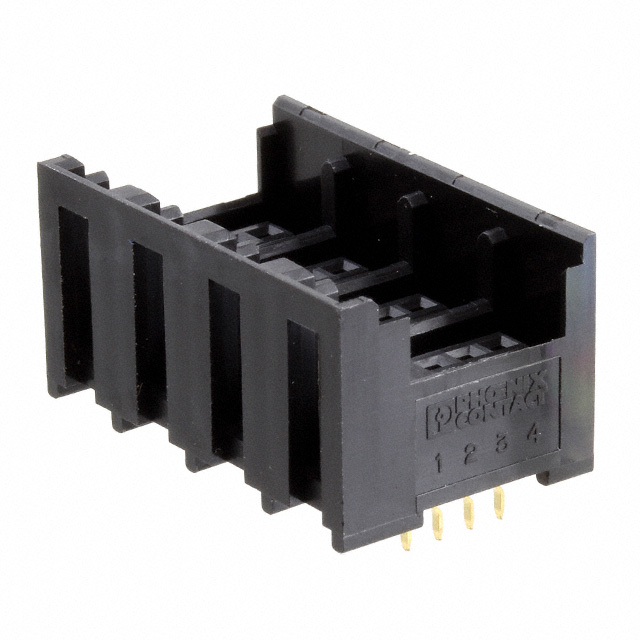

Phoenix Contact part number 1701401 is a CIOC 4-4-FV header designed for PCB plug connector applications. This component features a wire-to-board connection configuration with 16 positions arranged in a 4x4 grid. It utilizes a 2mm pitch and employs a solder straight through-hole mounting method. The header serves as the mating interface for corresponding plug connectors within the CIOC series, facilitating reliable signal transmission in industrial control environments.

Headers, Receptacles, Female Sockets Feature Summary

• Provides a secure mechanical and electrical interface for mating with CIOC series plug connectors
• Supports standard through-hole soldering processes for robust PCB attachment
• Features a compact 2mm pitch design to optimize board space utilization

Headers, Receptacles, Female Sockets Applications

• Industrial automation control panels requiring modular I/O connectivity
• Machine building systems utilizing Phoenix Contact COMBICON or CIOC interfaces
• Electronic assemblies needing standardized wire-to-board header connections

Headers, Receptacles, Female Sockets Procurement Notes

Verify that the specific application requires a 16-position header with a 2mm pitch before procurement. Confirm compatibility with the intended CIOC plug connector model to ensure proper mating engagement. Check PCB footprint dimensions against the official datasheet to guarantee correct solder pad alignment and hole spacing. Ensure the through-hole mounting style matches the manufacturing process capabilities of the printed circuit board assembly line.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a fixed header solution is required rather than a pluggable terminal block system. Consider the 2mm pitch constraint if high-density wiring is necessary on the target PCB. Evaluate the through-hole soldering requirement against surface-mount alternatives if space or thermal constraints dictate otherwise. Verify that the current carrying capacity associated with the 2mm pitch meets the specific signal or power requirements of the circuit design.

Headers, Receptacles, Female Sockets Part Context

The 1701401 belongs to the CIOC (Compact Industrial Connector) series by Phoenix Contact. This series is engineered for harsh industrial environments, offering robust connectivity solutions. The CIOC system typically pairs headers like 1701401 with corresponding plugs to create flexible and serviceable connection points between cables and printed circuit boards in automated machinery.

Headers, Receptacles, Female Sockets Replacement Considerations

No direct public substitute part numbers are identified in the provided documentation. Cross-referencing with other manufacturers requires careful verification of pin count, pitch, and mounting type to ensure functional equivalence.
