1705451054

Edgeboard Connectors Overview

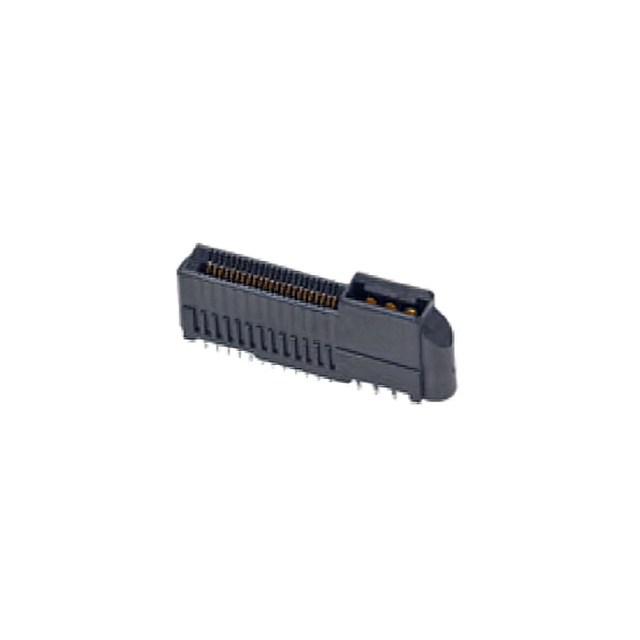

The Molex 1705451054 is an EdgeLineESP vertical card edge connector designed for high-speed data transmission. It features a 0.80mm pitch and supports 12.5 Gbps signaling rates. The component accommodates a PCB thickness of 2.36mm and provides 54 circuits, including two dedicated power circuits capable of handling 30A current loads.

Edgeboard Connectors Feature Summary

• Supports 12.5 Gbps data transfer rates
• Includes integrated 30A power module capabilities
• Designed for vertical mounting orientation

Edgeboard Connectors Applications

• High-speed digital signal interconnects
• Thermal management packaging systems
• Consumer electronics applications

Edgeboard Connectors Procurement Notes

Verify the specific pin configuration and contact plating requirements against the target system design. Confirm that the host PCB stack-up matches the specified 2.36mm thickness to ensure proper mechanical retention and electrical performance during assembly.

Edgeboard Connectors Selection Notes

Select this part when high-density vertical connectivity is required alongside significant power delivery needs. The dual power circuit design allows for efficient current distribution within a compact form factor suitable for space-constrained electronic assemblies.

Edgeboard Connectors Part Context

This component belongs to the EdgeLineESP series, which focuses on high-frequency performance and thermal efficiency. It complements standard signal connectors by offering robust power handling in a vertical profile, addressing the growing demand for integrated power and data solutions in modern electronics.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available.
