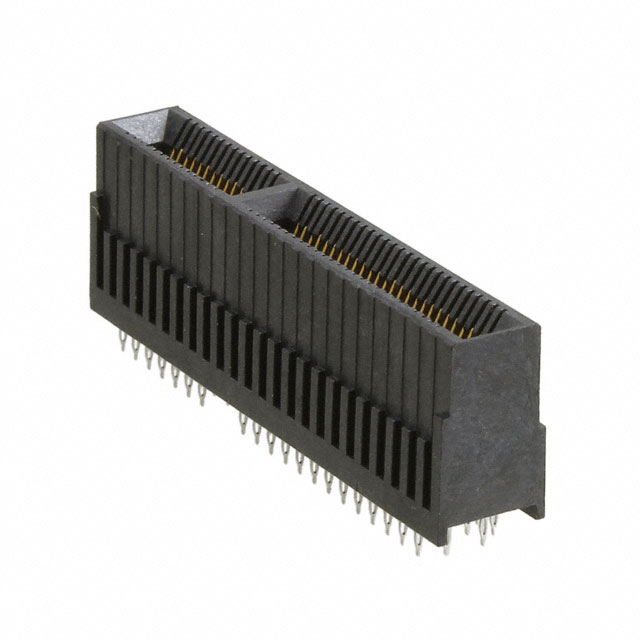

Description：CONN EDGE DUAL FMALE 80POS 0.031
Series：EdgeLine 170673
Mfr：Molex
Package：Tray

SKU:48c2c0a4c762 Category: Edgeboard Connectors Brand: Molex

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

1706732080 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists Molex. Its product description is CONN EDGE DUAL FMALE 80POS 0.031. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 1706732080

Description：CONN EDGE DUAL FMALE 80POS 0.031
Series：EdgeLine 170673
Mfr：Molex
Package：Tray
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：-
Number of Positions：80
Card Thickness：0.063" (1.60mm)
Number of Rows：2
Pitch：0.031" (0.80mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Press-Fit
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：30.0µin (0.76µm)
Contact Type：-
Color：Black
Flange Feature：-
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 1706732080

1706732080

Edgeboard Connectors Overview

The Molex part number 1706732080 is a Standard Card Edge Connector from the Edgeline series. It features 80 contact positions with a 0.062-inch pitch. The connector utilizes a dual-edge design and includes a gold over nickel contact finish. It has a maximum operating temperature of 105°C and a current rating of 1.5 A.

Edgeboard Connectors Feature Summary

Dual-edge card edge connector configuration
Gold over nickel contact finish for reliability
Edgeline series standard specification

Edgeboard Connectors Applications

HMI projects
Display systems
External peripheral connections

Edgeboard Connectors Procurement Notes

Verify the exact manufacturer part number against official Molex documentation to ensure compatibility. Confirm that the dual-edge interface matches the target PCB design requirements. Check the specific contact finish specifications to guarantee electrical performance standards are met for the intended application environment.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge card edge interface is required for board-to-board or backplane connections. Ensure the 80-position count aligns with signal routing needs. Verify that the 1.5 A current rating and 105°C temperature limit satisfy the system's operational constraints and thermal management capabilities.

Edgeboard Connectors Part Context

This component belongs to the Molex Edgeline family, which provides standard card edge connectivity solutions. The Edgeline series is designed for general-purpose applications requiring reliable signal transmission. This specific model represents a high-density option within the standard lineup, suitable for various electronic assemblies.
