1706732278

Edgeboard Connectors Overview

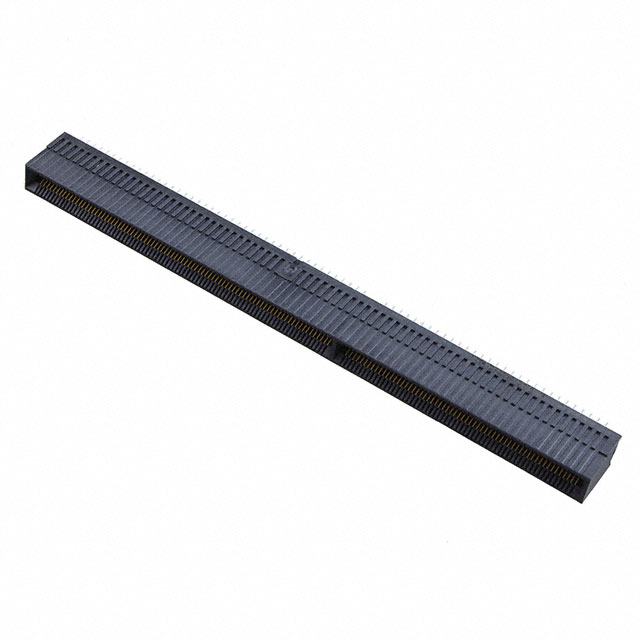

The Molex 1706732278 is an EdgeLine vertical card edge connector featuring a 0.80mm pitch and dual female contact configuration. It supports data rates up to 12.5 Gbps and accommodates a PCB thickness of 1.57mm (0.062 inches). The component comprises 278 circuits arranged in two bays, designed for high-density signal transmission in demanding electronic applications.

Edgeboard Connectors Feature Summary

• Supports high-speed data transmission with a bandwidth capability of 12.5 Gbps
• Features a dual female contact design for secure mating with card edge boards
• Engineered for vertical mounting on printed circuit boards with specified thickness tolerance

Edgeboard Connectors Applications

• High-performance computing systems requiring dense interconnects
• Telecommunications infrastructure equipment
• Industrial control modules utilizing card edge architectures

Edgeboard Connectors Procurement Notes

Verify the specific part number against official Molex documentation to ensure compatibility with required PCB thickness and pin count. Confirm that the dual female configuration aligns with the target board design. Cross-reference the 12.5 Gbps specification with system requirements to validate signal integrity needs.

Edgeboard Connectors Selection Notes

Select this connector when a high-pin-count solution with a 0.80mm pitch is required. Ensure the application environment supports vertical mounting constraints. Validate that the 278-circuit capacity meets the total I/O requirements of the host system without exceeding thermal or mechanical limits defined by the series specifications.

Edgeboard Connectors Part Context

This component belongs to the Molex EdgeLine series, which specializes in high-speed card edge connectors. The series is engineered for applications demanding reliable signal integrity at high frequencies. The 1706732278 variant specifically addresses needs for high-density interconnects in compact form factors.

Edgeboard Connectors Replacement Considerations

Consult official Molex substitution guides for verified alternatives. Generic cross-references may not match the precise 0.80mm pitch or 12.5 Gbps performance characteristics required for signal integrity.
