1714869

Headers, Receptacles, Female Sockets Overview

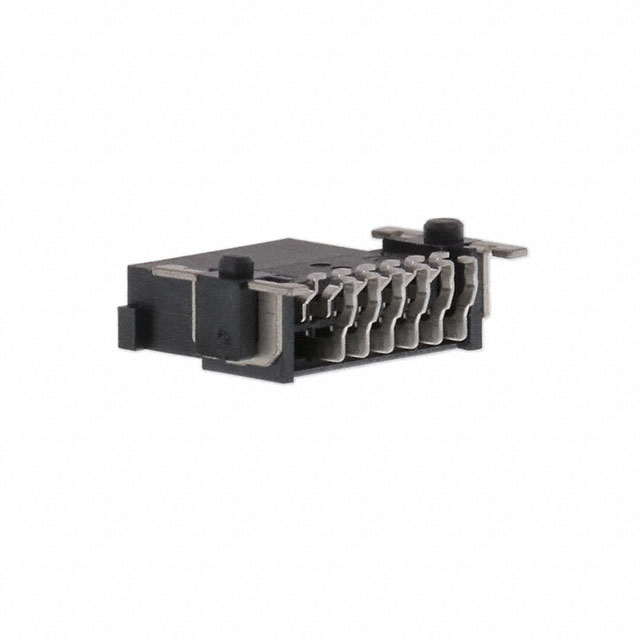

The Phoenix Contact 1714869 is a surface-mount female connector from the FINEPITCH series, designed for board-to-board and mezzanine applications. It features a right-angle PCB socket configuration with 12 contacts arranged in two rows. The component utilizes a 1.27 mm pitch and employs gold-plated copper contacts housed in black liquid crystal polymer (LCP). Rated for a nominal current of 1.4 A and a test voltage of 500 V AC, it offers an insulation resistance of 10 GOhms. The housing meets UL 94 V-0 flammability standards.

Headers, Receptacles, Female Sockets Feature Summary

• Right-angle surface mount design for compact PCB integration
• Gold-plated copper contacts ensure reliable signal transmission
• High-density two-row configuration with 1.27 mm pitch
• Flame-retardant LCP housing compliant with UL 94 V-0

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnections
• Mezzanine connector systems
• Industrial automation modules
• Electronic control units

Headers, Receptacles, Female Sockets Procurement Notes

Verify component authenticity through authorized Phoenix Contact distributors or official channels. Confirm that the received part matches the FP 1,27/ 12-FH designation and serial number. Check for physical damage to the SMD pins and housing integrity before installation. Ensure storage conditions maintain component quality. Validate compliance with RoHS directives if required by your specific application standards.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, right-angle surface-mount solution is required for high-density connections. The 1.27 mm pitch suits space-constrained designs needing robust electrical performance. Consider the 1.4 A current rating and 500 V AC test voltage for appropriate circuit compatibility. The gold contact plating supports repeated mating cycles in critical applications.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to the Phoenix Contact FINEPITCH series, which specializes in high-density interconnect solutions. The series is engineered for modern electronics requiring miniaturization without sacrificing reliability. The 1714869 model specifically addresses needs for secure board-to-board linking in automated and industrial environments.

Headers, Receptacles, Female Sockets Replacement Considerations

Phoenix Contact 1337010 is listed as a direct substitute. Verify pinout compatibility and mechanical dimensions before swapping. Ensure the replacement maintains the same 1.27 mm pitch and 12-contact configuration.

Headers, Receptacles, Female Sockets FAQ

What is the maximum operating temperature range?

Specific thermal operating limits are not detailed in the provided documentation; consult the full datasheet for precise temperature ratings.

Is the connector compatible with lead-free soldering processes?

The documentation does not explicitly state lead-free soldering compatibility; verify process requirements against the manufacturer's latest specifications.
