1714871

$4.91

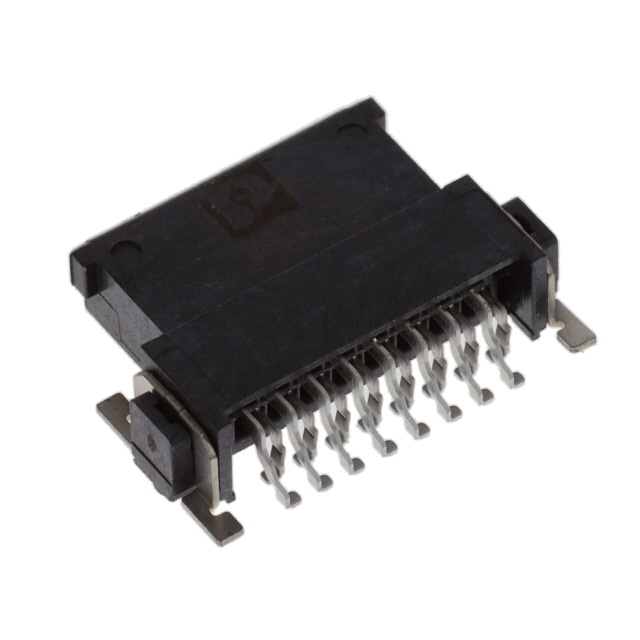

Description：CONN RECPT 1.27MM 16POS SMD RA
Series：COMBICON FP
Mfr：Phoenix Contact
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:4ca37c2a908b Category: Headers, Receptacles, Female Sockets Brand: Phoenix Contact

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

1714871 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Phoenix Contact. Its product description is CONN RECPT 1.27MM 16POS SMD RA. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 1714871

Description：CONN RECPT 1.27MM 16POS SMD RA
Series：COMBICON FP
Mfr：Phoenix Contact
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board or Cable
Number of Positions：16
Number of Positions Loaded：All
Pitch - Mating：0.050" (1.27mm)
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Mounting Type：Surface Mount, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Insulation Color：Black
Insulation Height：0.150" (3.81mm)
Contact Length - Post：-
Operating Temperature：-55°C ~ 125°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Tin
Mated Stacking Heights：-
Ingress Protection：-
Features：Board Guide, Solder Retention
Current Rating (Amps)：1.4A
Voltage Rating：500V

Headers, Receptacles, Female Sockets datasheet and documents for 1714871

1714871

Headers, Receptacles, Female Sockets Overview

Phoenix Contact part number 1714871 is a surface-mount receptacle connector from the FINEPITCH series. It features 16 positions with a 1.27 mm (0.050 inch) pitch. The connector utilizes right-angle SMD termination and gold-plated contacts for reliable signal transmission. Rated current is 1.5 A per IEC standards, with an insulation resistance of 10 GOhms. The housing material meets UL 94 V-0 flammability ratings. Designed for compact electronic assemblies, it supports automated PCB placement.

Headers, Receptacles, Female Sockets Feature Summary

High-density 16-position layout optimized for space-constrained applications
Gold-plated contact surfaces ensure stable electrical performance
Right-angle surface mount design facilitates efficient board routing

Headers, Receptacles, Female Sockets Applications

Compact consumer electronics assemblies
Industrial control system interfaces
Automotive electronic modules

Headers, Receptacles, Female Sockets Procurement Notes

Verify that the specific order matches manufacturer part number 1714871 exactly. Confirm compatibility with standard surface-mount reflow soldering profiles. Ensure storage conditions maintain component integrity prior to assembly. Check for any recent product change notifications regarding packaging or material composition updates.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when high pin density is required within limited board area constraints. The 1.27 mm pitch allows for significant connection points in small footprints. Right-angle orientation simplifies wiring management in tight enclosures. Gold plating provides superior corrosion resistance compared to tin alternatives.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to the FINEPITCH series, designed specifically for miniaturized electronic systems. It complements Phoenix Contact's broader portfolio of interconnect solutions by addressing the need for reliable connections in densely packed circuit boards where space efficiency is critical for overall device functionality.
