Headers, Receptacles, Female Sockets Overview

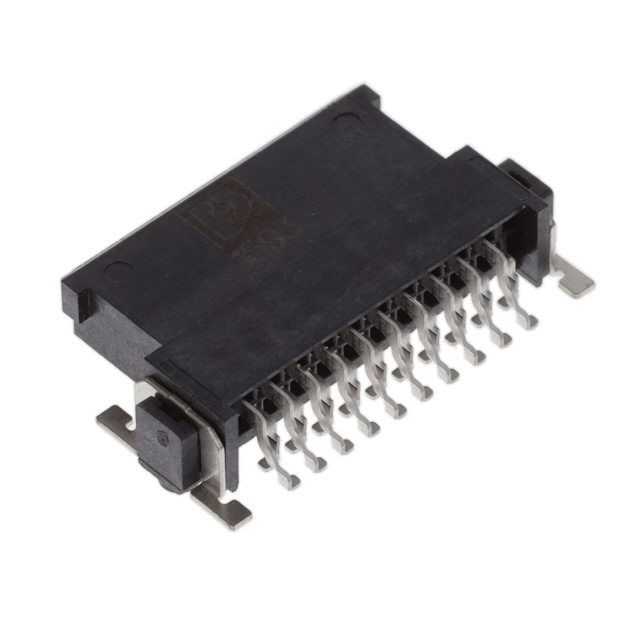

The Phoenix Contact 1714872 is a surface-mount PCB receptacle from the FINEPITCH series. It features a 20-position, 2-row configuration with a 1.27 mm pitch. Designed for right-angle horizontal mounting, this female connector utilizes gold-plated contacts and operates at a nominal current of 1.4 A with a test voltage of 500 V AC. The unit exhibits an insulation resistance of 10 GOhms and carries a UL 94 V-0 flammability rating.

Headers, Receptacles, Female Sockets Feature Summary

• Surface-mount design for automated assembly processes
• Gold contact plating for reliable signal transmission
• High insulation resistance ensuring electrical safety

Headers, Receptacles, Female Sockets Applications

• Wire-to-board interconnections
• Board-to-board connections
• High-density electronic assemblies

Headers, Receptacles, Female Sockets Procurement Notes

Verify component authenticity through authorized channels due to discontinuation status. Confirm that the specific ordering suffix matches the required mechanical orientation and contact finish. Check current stock availability as the manufacturer indicates the product is no longer manufactured and will cease stocking once existing inventory is depleted. Ensure compatibility with mating header specifications before procurement.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, high-density connection is required for space-constrained designs. The 1.27 mm pitch allows for increased pin density compared to standard 2.54 mm connectors. Consider the right-angle form factor for vertical board stacking or limited height restrictions. Verify that the 1.4 A current rating meets the circuit requirements and that the SMT package aligns with the PCB footprint design rules.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the FP 1.27/ 20-FH series within the Phoenix Contact FINEPITCH family. It is specifically engineered for applications demanding compact footprints and reliable surface-mount technology integration. The series emphasizes precision engineering for dense electronic layouts, distinguishing it from broader industrial connector lines by focusing on miniaturization and high-contact counts in small form factors.

Headers, Receptacles, Female Sockets Replacement Considerations

Public confirmed substitute part numbers are not explicitly listed in the provided documentation. Users should consult official Phoenix Contact substitution tools or authorized distributors for equivalent components. Due to the discontinued status, direct replacements may require verifying mechanical dimensions and electrical characteristics against available alternatives.
