Headers, Receptacles, Female Sockets Overview

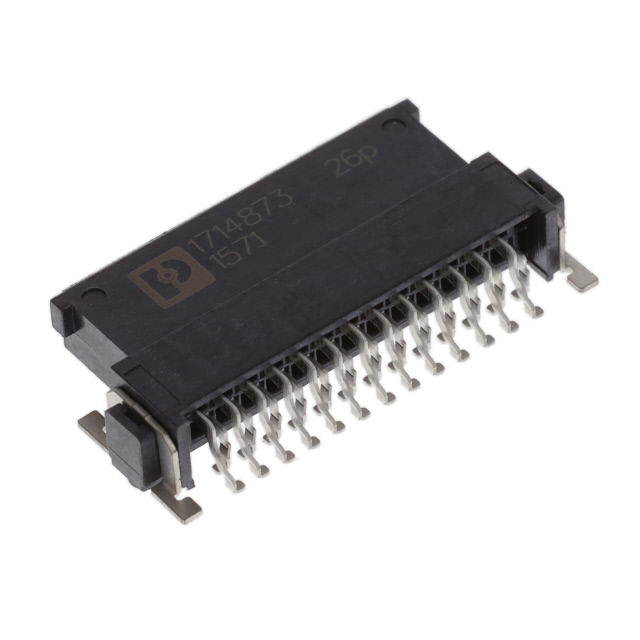

Phoenix Contact part number 1714873 is a surface-mount PCB receptacle from the FP 1.27/ 26-FH series. It features 26 contacts arranged in two rows with a 1.27 mm pitch. The connector utilizes liquid crystal polymer housing and gold-plated contacts for reliable signal transmission. Designed for right-angle horizontal mounting, it supports wire-to-board applications. Key electrical specifications include an insulation resistance of 10 GOhms and a UL 94 V-0 flammability rating. The component measures approximately 50.8 mm in length and 10.16 mm in width, suitable for compact electronic assemblies requiring high-density interconnects.

Headers, Receptacles, Female Sockets Feature Summary

• Surface-mount design for automated assembly processes
• Gold-plated contacts ensure stable signal integrity
• Liquid crystal polymer housing provides thermal stability
• Right-angle configuration saves vertical board space

Headers, Receptacles, Female Sockets Applications

• Industrial control systems requiring dense I/O connections
• Consumer electronics with limited vertical clearance
• Telecommunications equipment needing reliable signal paths
• Automotive embedded modules for data transmission

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix matches the required contact plating and housing material. Confirm that the surface-mount footprint aligns with your PCB layout guidelines. Ensure compatibility with standard reflow soldering profiles to prevent thermal damage to the liquid crystal polymer housing. Check for RoHS compliance documentation if required by your manufacturing standards.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when high-density two-row connectivity is required on a single-sided PCB. The 1.27 mm pitch allows for significant pin count within a small area. Consider the right-angle orientation for cable management constraints. Verify that the operating temperature range meets the environmental conditions of the final application.

Headers, Receptacles, Female Sockets Part Context

This receptacle belongs to Phoenix Contact's FP series, designed for flat cable and wire-to-board connections. The series offers various pin counts and pitches to accommodate different density requirements. The 1714873 variant specifically addresses needs for 26-position interfaces in space-constrained environments.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes must match the 1.27 mm pitch, 26-pin count, and SMD package dimensions. Verify that alternative connectors support the same current rating and voltage specifications. Ensure the replacement maintains the right-angle form factor and UL 94 V-0 rating for safety compliance.
