1714875

Headers, Receptacles, Female Sockets Overview

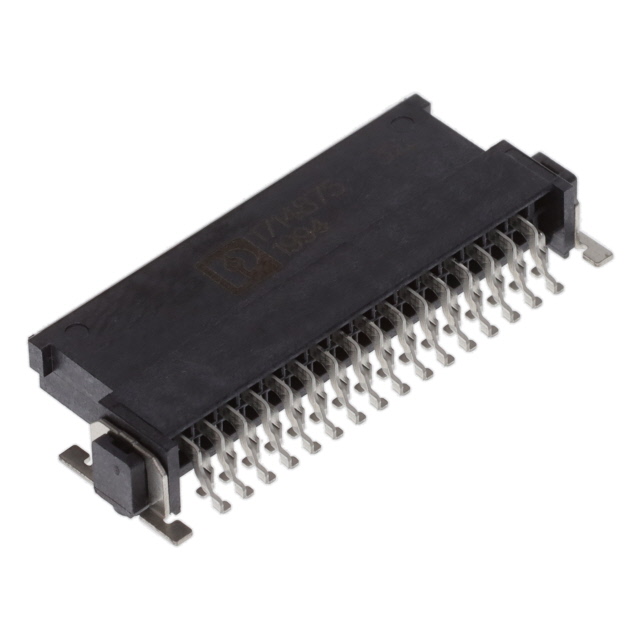

The Phoenix Contact 1714875 is a surface-mount PCB receptacle from the FINEPITCH series. It features a 1.27 mm pitch and a 32-contact configuration arranged in two rows. The connector utilizes gold-plated contacts on a copper substrate, housed in black liquid crystal polymer (LCP). Rated for a nominal current of 1.4 A at 20 °C and a test voltage of 500 V AC, it offers UL 94 V-0 flammability and 10 GOhms insulation resistance.

Headers, Receptacles, Female Sockets Feature Summary

• High-density interconnect design with 1.27 mm pitch for compact board layouts
• Gold contact plating ensures reliable signal transmission and corrosion resistance
• SMD right-angle mounting facilitates efficient space utilization on printed circuit boards

Headers, Receptacles, Female Sockets Applications

• Industrial production facilities requiring automated process connections
• Renewable energy infrastructure systems
• Complex device connections within networking and automation sectors

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific part number 1714875 against official Phoenix Contact documentation to confirm compatibility with your design requirements. Ensure that the surface-mount footprint and right-angle orientation match your PCB layout specifications. Cross-reference the electrical ratings, including the 1.4 A nominal current and 500 V AC test voltage, to validate suitability for your application's operational conditions.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when high-density connectivity is required in confined spaces. The 1.27 mm pitch allows for increased pin counts compared to standard 2.54 mm headers. Consider the SMD right-angle form factor for vertical integration needs. Verify that the LCP housing material and UL 94 V-0 rating meet the thermal and safety standards of the target environment.

Headers, Receptacles, Female Sockets Part Context

This receptacle belongs to the Phoenix Contact FINEPITCH series, designed for applications demanding reliable connections in industrial and automation environments. The series supports various contact counts and mounting styles, providing scalable solutions for electrification and data flow management. As a key partner in sector coupling, Phoenix Contact develops products for sustainable and efficient processes across global markets.

Headers, Receptacles, Female Sockets Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should consult official Phoenix Contact resources for potential alternatives or cross-references.
