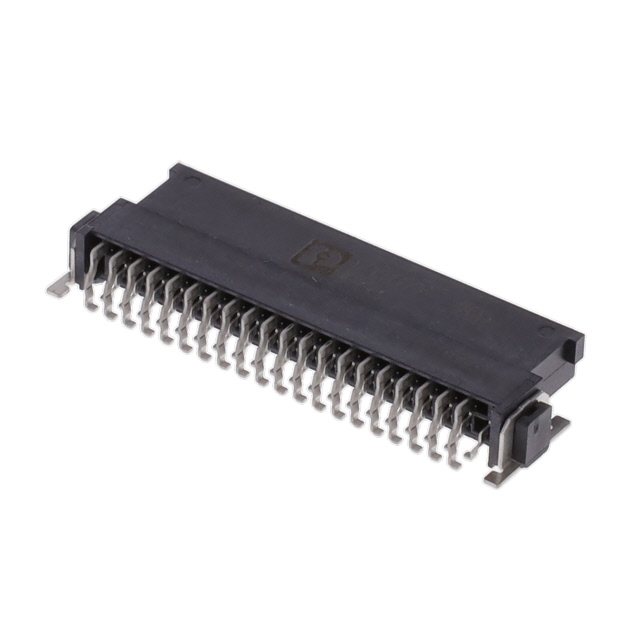

1714877 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Phoenix Contact. Its product description is CONN RECPT 1.27MM 40POS SMD RA. Review the specifications below when checking this part for your BOM.
Headers, Receptacles, Female Sockets specifications for 1714877
- Description：CONN RECPT 1.27MM 40POS SMD RA
- Series：COMBICON FP
- Mfr：Phoenix Contact
- Package：Tape & Reel (TR),Cut Tape (CT)
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：40
- Number of Positions Loaded：All
- Pitch - Mating：0.050" (1.27mm)
- Number of Rows：2
- Row Spacing - Mating：0.050" (1.27mm)
- Mounting Type：Surface Mount, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：-
- Insulation Color：Black
- Insulation Height：0.150" (3.81mm)
- Contact Length - Post：-
- Operating Temperature：-55°C ~ 125°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Tin
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：Board Guide, Solder Retention
- Current Rating (Amps)：1.4A
- Voltage Rating：500V
Headers, Receptacles, Female Sockets datasheet and documents for 1714877
Headers, Receptacles, Female Sockets Overview
Phoenix Contact part number 1714877 is an FP 1,27/ 40-FH SMD female connector. It features a 40-contact configuration with a 1.27 mm pitch. The component utilizes gold-plated copper alloy contacts and is designed for surface mount installation. It complies with UL 94 V-0 flammability standards and exhibits an insulation resistance of 10 GOhms.
Headers, Receptacles, Female Sockets Feature Summary
- Gold-plated copper alloy contacts ensure reliable signal transmission
- Surface mount design facilitates automated PCB assembly
- High insulation resistance supports stable electrical performance
Headers, Receptacles, Female Sockets Applications
- Board-to-board interconnections
- Mezzanine connector applications
- High-density electronic assemblies
Headers, Receptacles, Female Sockets Procurement Notes
Verify current availability status as the product may be obsolete. Confirm specific ordering suffixes if required for variant selection. Ensure compatibility with existing PCB footprint designs before procurement. Check for alternative components if supply chain constraints exist.
Headers, Receptacles, Female Sockets Selection Notes
Select this component for applications requiring high-density SMD connections. The 1.27 mm pitch suits compact layouts. Gold plating offers corrosion resistance. Verify thermal requirements against UL 94 V-0 ratings. Ensure mating connector compatibility with the FH series.
Headers, Receptacles, Female Sockets Part Context
This connector belongs to the FP series from Phoenix Contact, designed for space-saving surface mount applications. The FP 1,27/ 40-FH variant specifically addresses high-pin-count needs in limited board areas. It complements other COMBICON and mezzanine solutions within the manufacturer's portfolio.
Headers, Receptacles, Female Sockets Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consider checking Phoenix Contact cross-reference tools for compatible alternatives if this specific item is discontinued.
