1714881

Headers, Receptacles, Female Sockets Overview

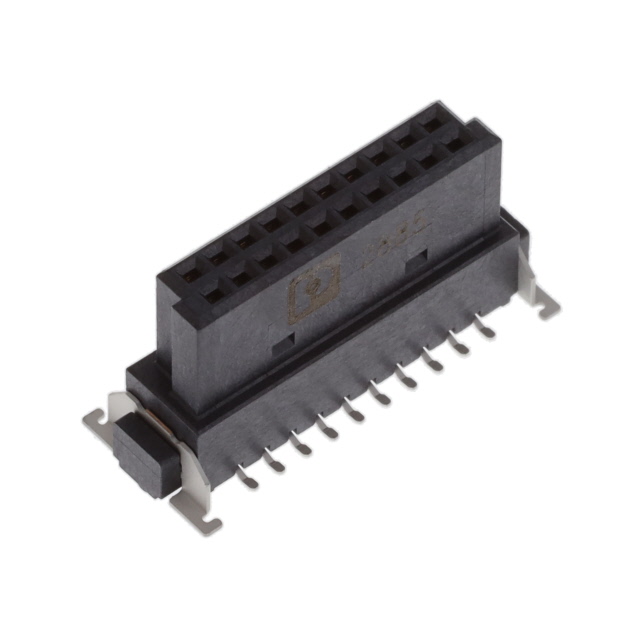

Phoenix Contact part number 1714881 is an SMD female connector from the FP series. It features a 1.27 mm pitch and 20 positions in a dual-row configuration. The component is designed for surface mount installation on printed circuit boards. Electrical ratings include a nominal current of 1.4 A and a test voltage of 500 V AC. Contacts are gold-plated to ensure stable long-term signal transfer. The housing is black, and the connector supports wire-to-board or board-to-board applications.

Headers, Receptacles, Female Sockets Feature Summary

• Gold-plated contacts maintain stable transfer quality over time
• Compact design suitable for high-density mounting
• Surface mount technology for automated PCB assembly

Headers, Receptacles, Female Sockets Applications

• Wire-to-board interconnections
• Board-to-board connections
• High-density electronic assemblies

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix and packaging details against the official Phoenix Contact datasheet before ordering. Confirm that the surface mount footprint matches your PCB design requirements. Check for RoHS compliance status if required by your manufacturing standards. Ensure the supplier provides original manufacturer documentation to guarantee authenticity and traceability of the component batch.

Headers, Receptacles, Female Sockets Selection Notes

Select this connector when a low-profile, high-pin-count solution is needed for signal transmission. The 1.27 mm pitch allows for dense routing compared to larger spacing options. Gold plating is preferred for environments requiring reliable contact resistance without lubrication. Consider thermal management during soldering due to the small form factor and surface mount nature.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the FP series of connectors from Phoenix Contact. The series focuses on compact, high-position count solutions for modern electronics. It complements other Phoenix Contact products used in industrial automation and control systems where reliable signal integrity is critical.

Headers, Receptacles, Female Sockets Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with mating headers or cables before attempting substitution.
