Headers, Receptacles, Female Sockets Overview

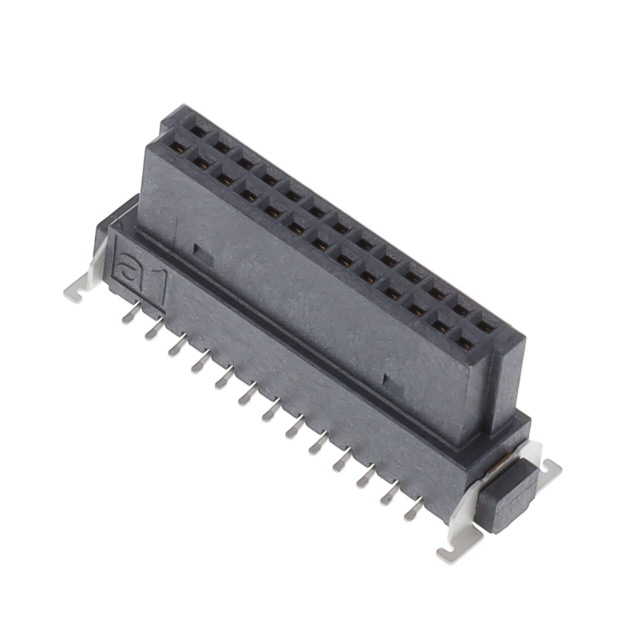

Phoenix Contact part number 1714882 is a board-to-board and mezzanine connector designed for surface mount (SMD/SMT) applications. This component features a female receptacle configuration with 26 positions arranged in two rows. The connector utilizes a 1.27 mm pitch to facilitate dense circuit board interconnections. It exhibits an insulation resistance of 10 GOhms, ensuring reliable electrical isolation between contacts. The unit is constructed to meet UL 94 V-0 flammability standards, providing necessary safety compliance for electronic assemblies. Designed for robust mechanical performance, this connector supports automated assembly processes typical in modern electronics manufacturing environments.

Headers, Receptacles, Female Sockets Feature Summary

• Surface mount technology compatible design for automated PCB assembly
• Female receptacle polarity configuration for secure mating
• High insulation resistance rating for signal integrity
• UL 94 V-0 rated material for fire safety compliance

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnection systems
• Mezzanine connector architectures
• High-density electronic module integration

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific datasheet version when sourcing this component, as Phoenix Contact may update mechanical drawings or material specifications over time. Confirm that the SMD footprint matches your PCB layout exactly, considering the 1.27 mm pitch and dual-row arrangement. Ensure that the receiving environment can accommodate the required soldering profile for surface mount components. Cross-reference the manufacturer part number directly to avoid confusion with similar series products.

Headers, Receptacles, Female Sockets Selection Notes

Select this connector when a low-profile, high-density interface is required between stacked circuit boards. The 26-position count and dual-row layout suit applications needing moderate I/O density within constrained vertical spaces. Consider the SMT mounting style if automated pick-and-place assembly is utilized. Evaluate the 1.27 mm pitch against available routing space on the target PCB to ensure adequate trace clearance and manufacturability.

Headers, Receptacles, Female Sockets Part Context

This component belongs to Phoenix Contact's board-to-board and mezzanine connector portfolio, which focuses on compact interconnection solutions for industrial and commercial electronics. The product line emphasizes reliability and ease of assembly through standardized surface mount designs. Phoenix Contact integrates these connectors into broader automation and electrification systems, supporting the company's focus on efficient process control and sustainable energy applications.

Headers, Receptacles, Female Sockets Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing mating headers before attempting any substitution.
