1714885

Headers, Receptacles, Female Sockets Overview

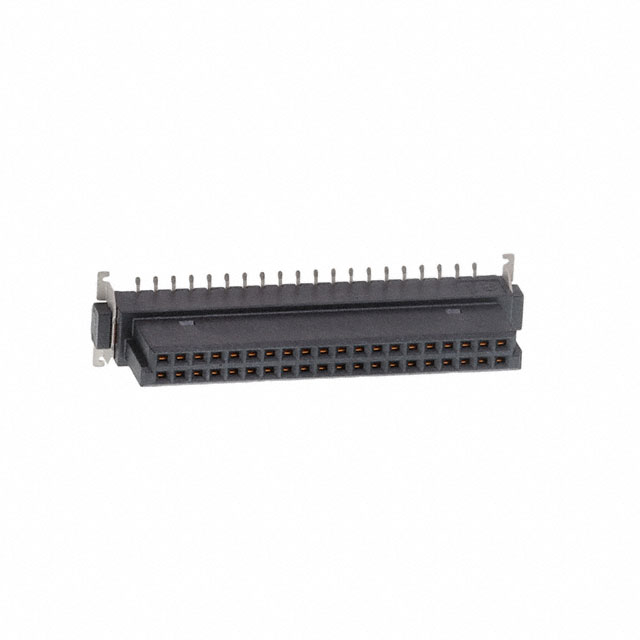

The Phoenix Contact 1714885 is a surface-mount female connector from the FP 1.27 series, designed for wire-to-board and board-to-board applications. It features a dual-row configuration with 40 contacts and a 1.27 mm pitch. The component utilizes liquid crystal polymer insulation and copper contacts with square contact shapes. Rated for 500V voltage and 1.4A current, it supports SMD/SMT mounting styles.

Headers, Receptacles, Female Sockets Feature Summary

• Dual-row surface-mount design for compact signal and power distribution
• Square contact shape ensures secure mating engagement
• Liquid crystal polymer insulation provides high thermal stability

Headers, Receptacles, Female Sockets Applications

• Wire-to-board interconnections in industrial control systems
• Board-to-board connections in mezzanine architectures
• Signal transmission in compact electronic assemblies

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix to confirm pin count and spacing variations. Ensure compatibility with standard SMD reflow profiles. Confirm that the 1.27 mm pitch matches the target PCB footprint. Check insulation material specifications for high-temperature environments.

Headers, Receptacles, Female Sockets Selection Notes

Select this component for applications requiring dense I/O in limited space. The 40-contact capacity suits complex signal routing. Verify current ratings against load requirements. Consider the square contact geometry for reliable mechanical retention during vibration.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the FP 1.27 series of SMD female connectors. It complements other variants like 1714882 with different contact counts. The series offers modular solutions for industrial connectivity needs.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes include related FP 1.27 series parts with adjusted contact counts. Verify pitch and row alignment before substitution. Cross-reference dimensions to ensure PCB compatibility.
