1714886

Headers, Receptacles, Female Sockets Overview

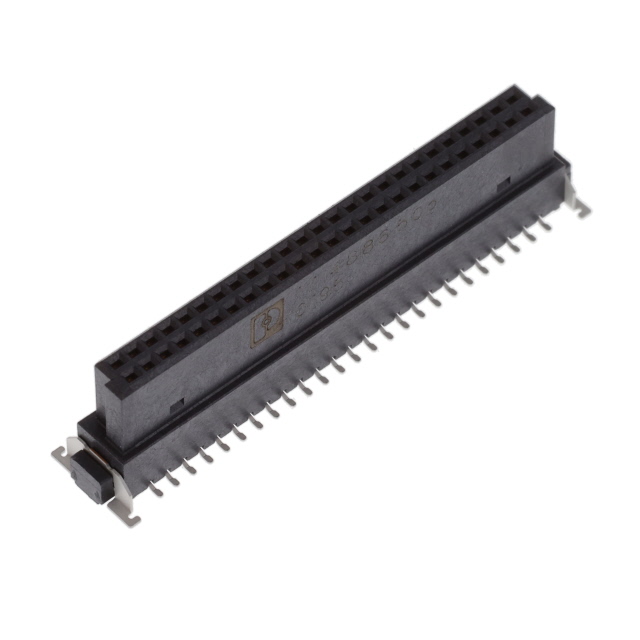

The Phoenix Contact 1714886 is a board-to-board and mezzanine connector receptacle from the COMBICON FP series. It features 50 positions with a 1.27 mm pitch across two rows. Designed for surface mount installation, it utilizes solder termination and gold-plated copper contacts housed in liquid crystal polymer (LCP). The component supports vertical mounting with stacking heights of 10.8 mm or 12.3 mm. It operates within a temperature range of -55°C to +125°C and carries an insulation resistance of 10 GOhms.

Headers, Receptacles, Female Sockets Feature Summary

• Two-row female socket configuration for high-density interconnects
• Gold-plated copper contacts ensure reliable signal transmission
• Vertical surface mount design facilitates compact PCB integration

Headers, Receptacles, Female Sockets Applications

• High-density board-to-board connections
• Mezzanine card interfaces
• Industrial automation control systems
• Complex device internal connectivity

Headers, Receptacles, Female Sockets Procurement Notes

Verify component availability as this part number is listed as obsolete. Confirm that the specific stacking height requirement matches the available variants. Ensure compatibility with existing PCB footprint designs before procurement. Check RoHS compliance status through official documentation. Validate that the operating temperature range meets system environmental specifications.

Headers, Receptacles, Female Sockets Selection Notes

Select this connector when a 50-position, 1.27 mm pitch interface is required. Consider the vertical orientation and SMT assembly process. Evaluate the LCP housing material for thermal stability. Assess the gold contact plating against environmental exposure requirements. Compare stacking height options against mechanical clearance constraints.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Phoenix Contact COMBICON FP series, designed for fine-pitch applications. It serves as a receptacle counterpart to matching header connectors. The series emphasizes reliability in industrial environments. It supports automated surface mount manufacturing processes. The product line focuses on robust electrical performance.

Headers, Receptacles, Female Sockets Replacement Considerations

Public confirmed substitute part numbers are not available. The component status is obsolete. Alternative solutions require manual cross-referencing with current Phoenix Contact portfolios. Verify pinout and mechanical dimensions for any potential replacements.
