1714889

Headers, Receptacles, Female Sockets Overview

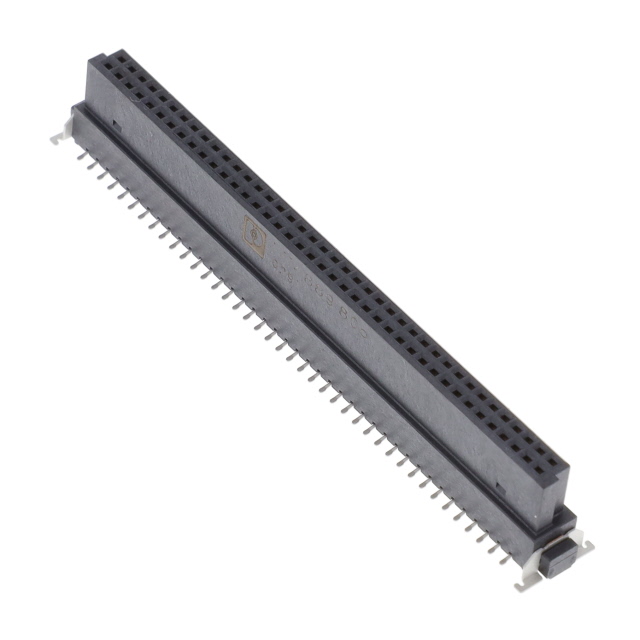

Phoenix Contact part number 1714889 is a board-to-board connector from the FP 1.27/80-FV series, designed for surface mount technology (SMD/SMT) applications. This component features an 80-position dual-row receptacle configuration with female socket contacts. The connector utilizes a precise 1.27 mm pitch to ensure reliable mating with corresponding headers. It is rated for a voltage of 500 V and operates within a temperature range of -55°C to 125°C. The unit exhibits high insulation resistance of 10 GOhms and meets UL 94 V-0 flammability standards.

Headers, Receptacles, Female Sockets Feature Summary

• Dual-row receptacle design for compact board-to-board interconnections
• Surface mount construction optimized for automated PCB assembly processes
• Female socket contact type ensuring secure mating engagement

Headers, Receptacles, Female Sockets Applications

• High-density electronic module interconnects
• Industrial control system backplanes
• Communication equipment internal circuit boards

Headers, Receptacles, Female Sockets Procurement Notes

Verify that the specific order matches the FP 1.27/80-FV series designation to ensure correct pin count and pitch. Confirm surface mount compatibility with your manufacturing equipment. Check RoHS compliance status against current regulatory requirements before finalizing procurement decisions.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a high-pin-count, low-profile connection is required between adjacent printed circuit boards. The 1.27 mm pitch allows for dense routing in space-constrained designs. Ensure mating connectors share the same series specifications for mechanical and electrical compatibility.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to Phoenix Contact's FP series, which specializes in flexible and rigid board-to-board solutions. The FP 1.27 series provides standardized spacing for consistent assembly across various industrial automation and electronics platforms. It supports robust signal transmission in demanding operational environments.

Headers, Receptacles, Female Sockets Replacement Considerations

No direct substitute part numbers are publicly confirmed in the provided documentation.
