Headers, Receptacles, Female Sockets Overview

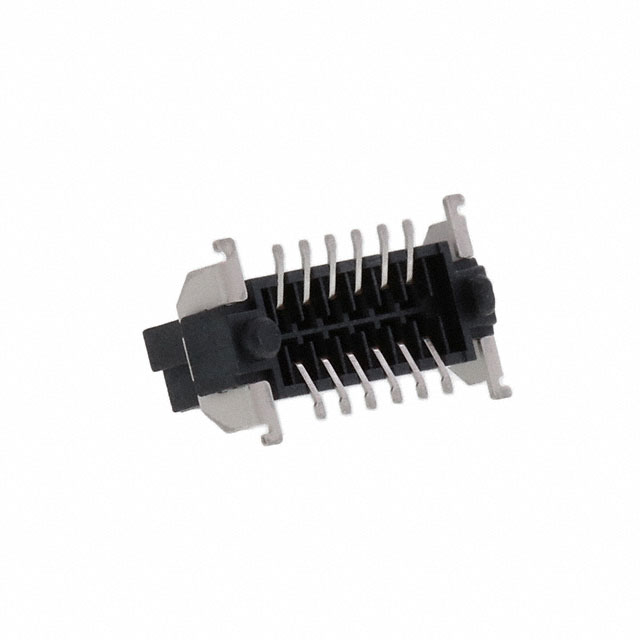

Phoenix Contact part number 1714891 is a surface-mount female connector from the FP series. It features 12 positions with a 1.27 mm pitch. The nominal current rating is 1.4 A, and the test voltage is 500 V AC. The housing is black, and contacts are gold-plated. Dimensions include a height of 6.25 mm.

Headers, Receptacles, Female Sockets Feature Summary

• Surface-mount technology for automated assembly
• Gold contact plating for reliable signal integrity
• Compact 1.27 mm pitch design

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnections
• Mezzanine connectors
• High-density electronic assemblies

Headers, Receptacles, Female Sockets Procurement Notes

Verify the exact datasheet version when sourcing, as Phoenix Contact may update mechanical drawings or compliance certifications over time. Confirm that the specific suffix or revision matches the required soldering profile and mounting orientation for the target PCB layout to ensure compatibility.

Headers, Receptacles, Female Sockets Selection Notes

Select this component for applications requiring high-density SMD connections. Ensure the receiving board supports the 1.27 mm pitch and 12-position footprint. Verify that the 1.4 A current rating and 500 V test voltage meet the system's electrical requirements before finalizing the design.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the FP series of surface-mount connectors by Phoenix Contact. The series is designed for space-constrained environments where reliable board-to-board or mezzanine connections are necessary. The 12-position variant offers a balance between density and pin count for complex circuit interfaces.

Headers, Receptacles, Female Sockets Replacement Considerations

No public substitute part numbers are confirmed in the provided documentation.
