Headers, Receptacles, Female Sockets Overview

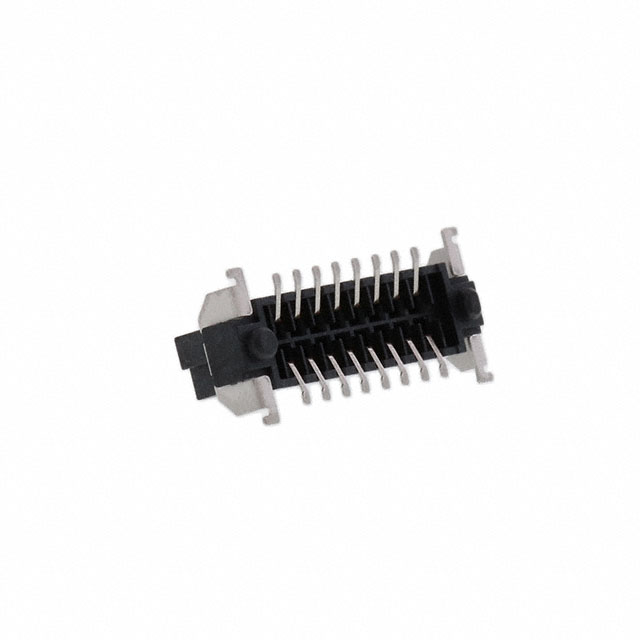

The Phoenix Contact 1714892 is a board-to-board and mezzanine connector from the FINEPITCH series, specifically the FP 1,27/ 16-FV 6,25 model. It is designed as a right-angle surface mount female socket with 16 contacts arranged in two rows. The component features a 1.27 mm pitch and utilizes SMD/SMT mounting technology. Key electrical specifications include an insulation resistance of 10 GOhms, while the mechanical construction meets UL 94 V-0 flammability ratings for safety compliance.

Headers, Receptacles, Female Sockets Feature Summary

• Right-angle surface mount design for compact PCB integration
• Dual-row configuration providing 16 contact points
• High insulation resistance ensuring signal integrity
• UL 94 V-0 rated housing for fire safety compliance

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnections
• Mezzanine connector applications
• Surface mount PCB assemblies requiring high-density connections

Headers, Receptacles, Female Sockets Procurement Notes

Verify current availability status as this specific part number may be discontinued or obsolete. Confirm compatibility with replacement options such as part number 1374028 if direct sourcing is unavailable. Ensure that any substitute components maintain identical pin counts, pitch dimensions, and mounting styles to guarantee proper system integration without redesigning the printed circuit board layout.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, right-angle female connector is required for dense board stacking. The 1.27 mm pitch allows for significant I/O density within limited board space. Consider the SMT mounting style for automated assembly processes. Verify that the 16-contact dual-row format aligns with the mating header requirements and that the UL 94 V-0 rating satisfies the end-product safety standards.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Phoenix Contact FINEPITCH series, which specializes in high-density interconnect solutions. The FP 1,27/ 16-FV 6,25 designation indicates a female variant with specific vertical height characteristics. As a board-to-board connector, it facilitates reliable electrical connections between parallel printed circuit boards in compact electronic systems.

Headers, Receptacles, Female Sockets Replacement Considerations

Part number 1374028 is listed as a direct substitute for the discontinued 1714892. Verify that the alternative maintains the same 16-contact, dual-row, 1.27 mm pitch specification and right-angle SMT form factor before implementation.
