1714893

Headers, Receptacles, Female Sockets Overview

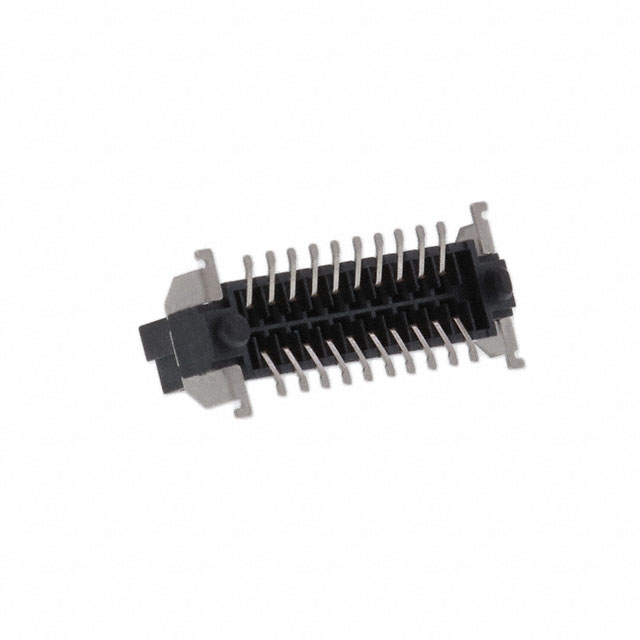

The Phoenix Contact 1714893 is a 20-position PCB receptacle from the FINEPITCH series, designed for surface mount assembly. It features a 1.27 mm (0.050 inch) pitch and utilizes a two-row configuration to accommodate connections on printed circuit boards. The connector employs gold-plated contacts to ensure reliable signal transmission and corrosion resistance. Constructed with liquid crystal polymer (LCP) housing, it meets UL 94 V-0 flammability ratings for enhanced safety in electronic applications.

Headers, Receptacles, Female Sockets Feature Summary

• Surface mount design for automated PCB assembly
• Gold-plated contacts for durable electrical performance
• High-temperature resistant LCP housing material
• Two-row layout optimizing board space utilization

Headers, Receptacles, Female Sockets Applications

• Industrial control system interconnections
• Consumer electronics internal wiring
• Automotive electronic module connections
• Telecommunications equipment assemblies

Headers, Receptacles, Female Sockets Procurement Notes

Verify component authenticity through authorized Phoenix Contact distributors or certified partners. Confirm that the received part matches the specific model number and packaging details. Check for physical damage to pins or housing before installation. Ensure storage conditions comply with manufacturer guidelines to maintain material integrity. Review current availability status as this item may be subject to discontinuation or supply chain variations.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, high-density connection is required for surface-mounted designs. The 1.27 mm pitch allows for compact layouts in space-constrained environments. Consider the two-row arrangement if higher pin counts are needed without increasing footprint dimensions. Evaluate thermal requirements to ensure the LCP housing withstands soldering temperatures and operational heat loads effectively.

Headers, Receptacles, Female Sockets Part Context

This receptacle belongs to the FINEPITCH series, which focuses on miniaturized connectivity solutions. The series supports various configurations tailored for modern electronic manufacturing trends. Components in this line emphasize reliability and precision engineering for demanding industrial and commercial applications.

Headers, Receptacles, Female Sockets Replacement Considerations

Phoenix Contact lists part number 1374029 as a replacement product for this discontinued item. Verify mechanical compatibility and electrical specifications before substituting. Ensure the alternative maintains the same pitch, row count, and mounting style.
