1714894

$4.56

Description：CONN RECEPTACLE 1.27MM 26POS SMD
Series：COMBICON FP
Mfr：Phoenix Contact
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:d722dff4827f Category: Headers, Receptacles, Female Sockets Brand: Phoenix Contact

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

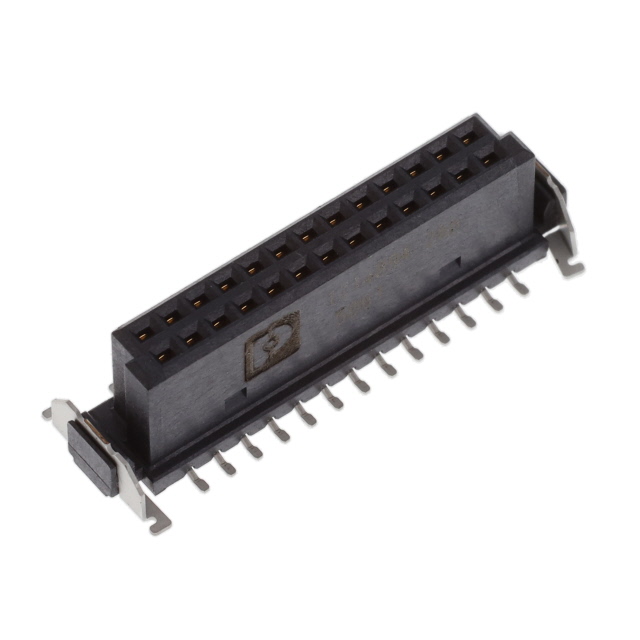

1714894 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Phoenix Contact. Its product description is CONN RECEPTACLE 1.27MM 26POS SMD. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 1714894

Description：CONN RECEPTACLE 1.27MM 26POS SMD
Series：COMBICON FP
Mfr：Phoenix Contact
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board or Cable
Number of Positions：26
Number of Positions Loaded：All
Pitch - Mating：0.050" (1.27mm)
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Insulation Color：Black
Insulation Height：0.246" (6.25mm)
Contact Length - Post：-
Operating Temperature：-55°C ~ 125°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Tin
Mated Stacking Heights：8mm, 9.5mm
Ingress Protection：-
Features：Board Guide, Solder Retention
Current Rating (Amps)：1.4A
Voltage Rating：500V

Headers, Receptacles, Female Sockets datasheet and documents for 1714894

1714894

Headers, Receptacles, Female Sockets Overview

Phoenix Contact part number 1714894 is a board-to-board and mezzanine connector from the FP series. It features a female receptacle configuration with 26 positions arranged in two rows. The component utilizes a 1.27 mm pitch and is designed for surface mount installation. Electrical ratings include a nominal current of 1.4 A and a test voltage of 500 V AC. The contacts are gold-plated copper alloy, housed in black liquid crystal polymer (LCP).

Headers, Receptacles, Female Sockets Feature Summary

Surface mount PCB socket design for reliable board-to-board interconnection.
Gold-plated contact surfaces ensure stable electrical performance.
High-temperature resistant LCP housing material.

Headers, Receptacles, Female Sockets Applications

Industrial control system signal transmission.
Data communication equipment internal connections.
Consumer electronics assembly.

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix against official Phoenix Contact documentation to confirm pin count and orientation. Ensure compatibility with standard SMT reflow profiles. Confirm RoHS compliance status through the manufacturer's latest certification records before integration into regulated products.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a 26-position, 1.27 mm pitch female connector is required for space-constrained applications. The surface mount style supports automated assembly processes. Verify that the 1.4 A current rating meets the circuit requirements.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Phoenix Contact FP series of right-angle surface PCB sockets. It is distinct from other Phoenix Contact terminal blocks or headers. The model specifically denotes a 26-position variant within the 1.27 mm pitch family.

Headers, Receptacles, Female Sockets Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Consult Phoenix Contact engineering for cross-reference options if obsolescence occurs.
