1714895

Headers, Receptacles, Female Sockets Overview

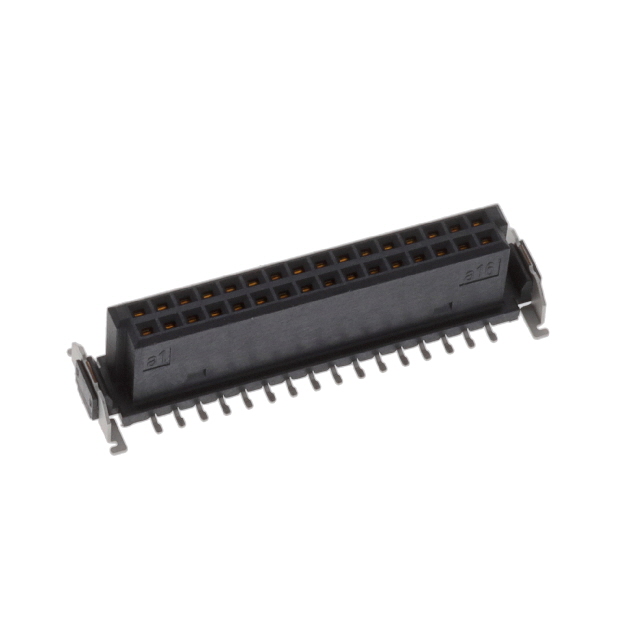

Phoenix Contact part number 1714895 is a surface-mount female PCB receptacle from the FP 1.27/32-FV series. It features 32 contacts arranged in two rows with a 1.27 mm pitch. The connector supports a nominal current of 1.4 A at 20 °C and withstands a test voltage of 500 V AC. Designed for board-to-board applications, it utilizes gold-plated contact surfaces and black housing.

Headers, Receptacles, Female Sockets Feature Summary

• Surface-mount design for automated assembly processes
• Gold-plated contact surfaces for reliable signal transmission
• Two-row configuration providing high-density interconnect capability

Headers, Receptacles, Female Sockets Applications

• Board-to-board connections
• Mezzanine connectors
• High-density PCB assemblies

Headers, Receptacles, Female Sockets Procurement Notes

This component is officially marked as obsolete and no longer manufactured by Phoenix Contact. Procurement should focus on verified direct substitutes such as part number 1374031. Verify availability through authorized distributors only to ensure authenticity and proper handling specifications.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a 32-position, 1.27 mm pitch SMD female header is required. Ensure the design accommodates the 6.25 mm height specification. Consider the obsolete status and prioritize replacement parts like 1374031 for new designs.

Headers, Receptacles, Female Sockets Part Context

The 1714895 belongs to the FP 1.27/32-FV series of surface-mount connectors. These components are engineered for compact electronic systems requiring robust board-to-board connectivity. The series emphasizes precision spacing and durable contact materials for consistent performance.

Headers, Receptacles, Female Sockets Replacement Considerations

Part 1374031 is listed as a direct substitute. Verify mechanical fit and electrical ratings before integration into existing designs.
