1714897

Headers, Receptacles, Female Sockets Overview

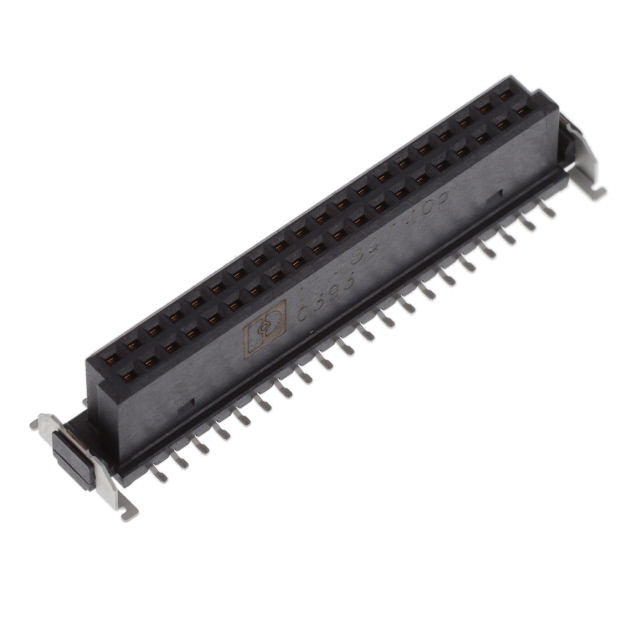

The Phoenix Contact 1714897 is an FP 1.27/40-FV series right-angle surface-mount PCB socket featuring 40 contacts arranged in a 2-row configuration with a 1.27 mm pitch. It supports a nominal current of 1.4 A and withstands a test voltage of 500 V AC. The component operates within a temperature range of -55°C to +125°C, has a height of 6.25 mm, and utilizes gold-plated contact surfaces. It carries a UL 94 V-0 flammability rating and offers insulation resistance of 10 GOhms.

Headers, Receptacles, Female Sockets Feature Summary

• Right-angle surface-mount design for compact board-to-board connections
• Double-sided contact system ensuring reliable mechanical and electrical stability
• Gold-plated contact surfaces for enhanced conductivity and corrosion resistance

Headers, Receptacles, Female Sockets Applications

• Industrial automation control systems
• Renewable energy infrastructure interfaces
• Complex device connection modules

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix (FV) against the target application requirements to ensure correct pin orientation and mating compatibility. Confirm that the SMD mounting style aligns with the assembly process capabilities. Check that the 1.27 mm pitch matches the footprint design on the printed circuit board to prevent soldering defects or misalignment during placement.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, high-density interconnect solution is required for space-constrained designs. The 40-position count and dual-row layout provide significant connectivity in a minimal area. Ensure the operating environment remains within the specified -55°C to +125°C thermal limits and that the 500 V AC dielectric strength meets the circuit isolation requirements.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Phoenix Contact FP 1.27 series, designed for high-reliability connections in industrial environments. The series is characterized by its small pitch and robust construction, suitable for applications requiring frequent mating cycles or high vibration resistance. It complements other components in the company's electrification and networking portfolio.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes include other Phoenix Contact FP 1.27 series sockets with identical 40-pin counts and 1.27 mm pitch, such as variant 1714894 if fewer positions are acceptable. Verify that any alternative maintains the same right-angle orientation and SMT mounting profile to ensure physical compatibility.
