1714899

Headers, Receptacles, Female Sockets Overview

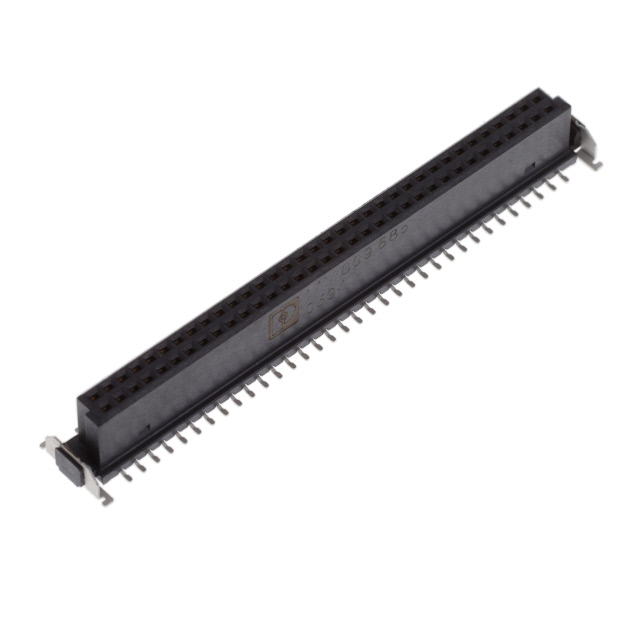

The Phoenix Contact 1714899 is a surface-mount female receptacle connector from the FINEPITCH series. It features a 68-position configuration with a 1.27 mm (0.050 inch) pitch. The housing is constructed from black Liquid Crystal Polymer (LCP) rated UL 94 V-0 for flammability. Contacts are gold-plated to ensure reliable signal transmission. The unit supports a nominal current of 1.4 A and withstands a test voltage of 500 V AC. Designed for vertical mounting, it facilitates board-to-board or wire-to-board connections in compact electronic assemblies.

Headers, Receptacles, Female Sockets Feature Summary

• Gold-plated contacts provide corrosion resistance and stable electrical performance
• UL 94 V-0 rated LCP housing ensures thermal stability and fire safety
• Surface mount design enables automated placement and space-efficient integration

Headers, Receptacles, Female Sockets Applications

• Industrial automation control modules
• Telecommunications equipment interfaces
• Consumer electronics internal interconnects

Headers, Receptacles, Female Sockets Procurement Notes

Verify that the specific order matches part number 1714899, as suffixes may indicate different packaging or contact configurations. Confirm compatibility with your PCB footprint and reflow soldering profile requirements. Ensure storage conditions maintain component integrity prior to assembly. Cross-reference official datasheets for precise mechanical dimensions and handling instructions.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when high-density vertical interconnects are required on space-constrained printed circuit boards. The 1.27 mm pitch balances density with manufacturability. Gold plating is suitable for low-signal applications requiring long-term reliability. Verify that the 1.4 A current rating meets the system's power distribution needs without excessive heating.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to Phoenix Contact’s FINEPITCH series, designed for miniaturized electronic systems. The series emphasizes reliable signal integrity in dense layouts. The 1714899 variant specifically addresses applications needing robust vertical connections between adjacent boards or components within industrial and commercial devices.

Headers, Receptacles, Female Sockets Replacement Considerations

No public confirmed substitute part numbers are available for direct replacement.
