Headers, Receptacles, Female Sockets Overview

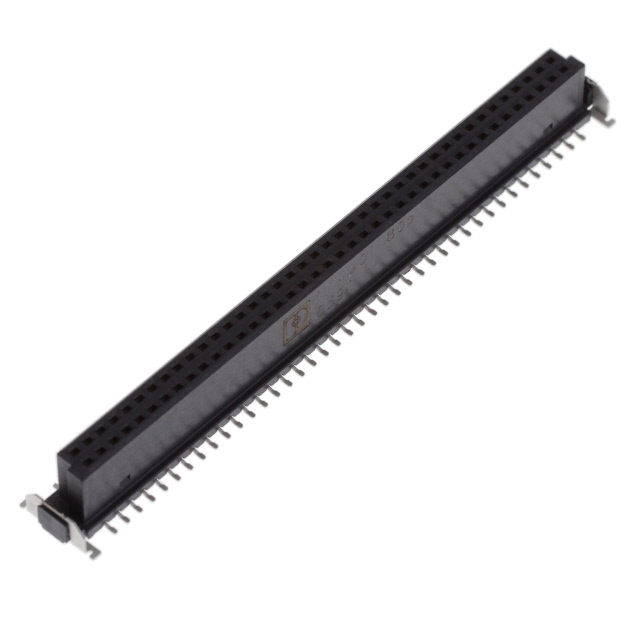

Phoenix Contact part number 1714901 is a PCB header connector belonging to the FP 1.27/80-FV series. It features an 80-pin configuration arranged in two rows with a 1.27 mm pitch. The component utilizes solder termination for surface mount installation and is constructed with copper contacts. It supports a rated voltage of 500 V and a current capacity of 1.4 A.

Headers, Receptacles, Female Sockets Feature Summary

• Dual-row pin header design providing high-density connectivity on printed circuit boards.
• Surface-mount construction utilizing solder termination for reliable board attachment.
• Copper contact material ensuring stable electrical performance within specified ratings.

Headers, Receptacles, Female Sockets Applications

• High-density signal routing in industrial control systems
• Interfacing between sub-assemblies in automated machinery
• Compact electronic modules requiring dual-row board-to-board connections

Headers, Receptacles, Female Sockets Procurement Notes

Verify availability status as this component may be discontinued or out of stock. Confirm RoHS compliance requirements against project specifications. Ensure ordering suffixes match exact mechanical dimensions. Validate that the 1.27 mm pitch aligns with existing PCB footprint designs before procurement.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when high pin density is required within a limited board area. The dual-row layout maximizes connection points while maintaining a narrow profile. Verify that the 1.4 A current rating meets system load requirements. Ensure surface-mount assembly capabilities are available for the manufacturing process.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to the FP 1.27/80-FV series, designed for compact PCB applications. The series offers standardized dimensions for easy integration into various electronic assemblies. Phoenix Contact manufactures these components to meet rigorous industrial quality standards for reliability and durability.

Headers, Receptacles, Female Sockets Replacement Considerations

Part number 1374036 is listed as a direct substitute. Verify mechanical compatibility and electrical specifications before substitution. Ensure the alternative maintains the same pin count and pitch requirements.
