1714999

Headers, Receptacles, Female Sockets Overview

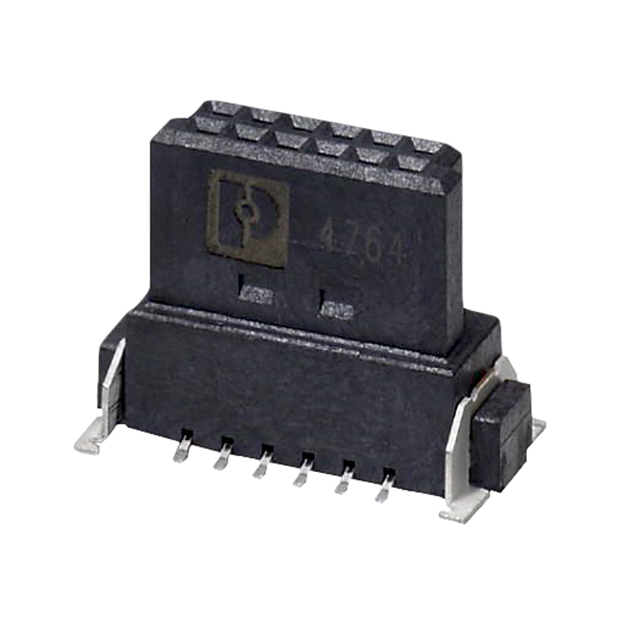

The Phoenix Contact 1714999 is a COMBICON FP series surface mount receptacle connector featuring 12 positions across two rows. Designed for board-to-board and wire-to-board applications, it utilizes a 1.27 mm pitch. The component includes gold-plated contacts to ensure stable long-term signal transfer quality. It is rated with UL 94 V-0 flammability and offers an insulation resistance of 10 GOhms.

Headers, Receptacles, Female Sockets Feature Summary

• Gold-plated contacts for stable long-term transfer quality
• Compact design suitable for high-position board-to-board or wire-to-board connections
• Surface mount mounting style for automated assembly

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnections
• Wire-to-board connections
• High-density electronic assemblies requiring compact form factors

Headers, Receptacles, Female Sockets Procurement Notes

Verify the obsolete status of part number 1714999 before procurement planning. Confirm availability of direct substitutes such as part number 1374873 if replacement is required. Ensure that sourcing channels provide valid documentation for the substitute components to maintain compliance with technical specifications and manufacturing requirements.

Headers, Receptacles, Female Sockets Selection Notes

Select this component for applications requiring a 12-position SMD female connector with a 1.27 mm pitch. Consider the UL 94 V-0 rating for fire safety compliance. Evaluate the need for gold-plated contacts in environments demanding stable long-term signal integrity. Assess space constraints due to the compact footprint of the COMBICON FP series.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Phoenix Contact COMBICON FP series, which provides high-density connectivity solutions. The FP series is characterized by its small pitch and robust construction, suitable for modern electronic devices where space efficiency and reliable electrical performance are critical requirements for system integration.

Headers, Receptacles, Female Sockets Replacement Considerations

Part number 1714999 is obsolete. Direct substitute part number 1374873 is available from Phoenix Contact. Verify pinout compatibility and mechanical dimensions when transitioning to the substitute component.
